2215 Flex Wing Rotary Cutter
2215 Flex-Wing Series Rotary Cutters
2215 Flex-Wing Series

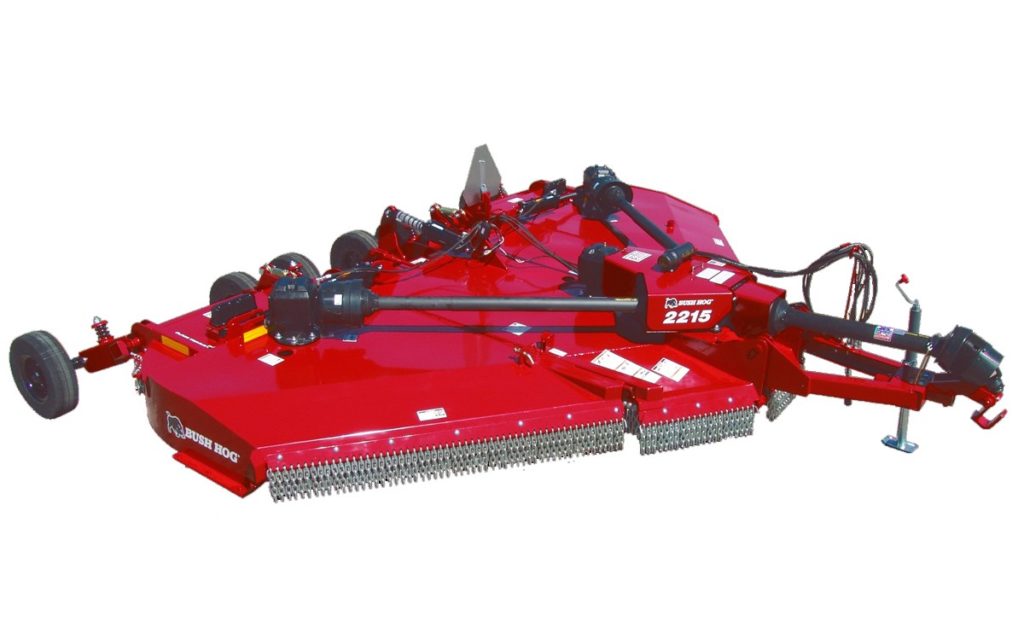

The Bush Hog® model 2215 Flex-Wing rotary cutter is designed to cut grass, weeds, and brush up to 3 1/2” in diameter. It is recommended for use in pasture maintenance, crop shredding, and roadside maintenance. With maintenance friendly features such as EZ clean decks, EZ lube drivelines and Bush Hog® tough durability, the 2215 is another Flex-Wing example of Bush Hog® Performance You Can Count On.
Features
Construction Features
- Axle spindles are in halves for quick and economical service.
- Center section blades closely align with center section wheel to better cut the bottom of ditches.
- Grease fittings and steel bushings at axle pivot points for extended life.
- Wing free float without movement of wing hydraulic cylinder rod extends cylinder life.
- Optional distribution baffles spread grass and cornstalks to eliminate windrows.
- Improved wing design results in a clean top and no exposed structure underneath.
- Patented oil sight gauge in all three cutting gear boxes for quick and easy monitoring of oil levels.
Safety Features
- Safety Tow Chain Standard
Specifications
| Model | 2215 |
|---|---|
| Cutting Width | 15’ |
| Cutting Height | 2’ to 14” |
| Hitch | Perma Level Hitch |
| Minimum Tractor PTO | H.P. 60 |
| Decks | 10 Gauge |
| Side Band | 1/4” x 12” |
| Blades | 1/2” x 4” |
| Blade Holders | Round |
| PTO Drivelines | ASAE Cat 6 |
| Wing Drivelines | ASAE Cat 4 |
| Wing Flex | 22° down to 87° up |
| Wing Free Float* | 22º down to 25º up |
| Splitter Gearbox Rating | 250 H.P. |
| Cutting Gearbox Rating | 210 H.P. |
| Gearbox Limited Warranty | 5 Years |
| Blade Tip Speed | 16,268 FPM |
| Cutting Capacity | 3 1/2” |
| Axle Cushions | Springs at Each Axle Arm |
| Wing Adjustments | Heavy Duty Turnbuckle |
| Grass/Crop Distribution | Baffles, Optional |
| Safety Tow Chain | Standard |
| *Float without movement of hydraulic cylinder rod | |
| 2215 MODEL AND 1815 MODEL DIFFERENCES | 2215 | 1815 |
|---|---|---|
| Gearbox, Splitter, H.P.: | 250 | 160 |
| Gearboxes (3), H.P.: | 210 | 130 |
| Maximum Cutting Capacity: | 3 1/2” diameter | 2 1/2” diameter |
| Blade Tip Speed: | 16,268 FPM | 15,000 FPM |
| Main Axles: | Square tubes | Round tubes |
| Axle Cushions: | Springs on each axle arm | Rubber cushions on center axle arms |
| Hitch: | Perma Level, standard | Perma Level or Cast Clevis |
