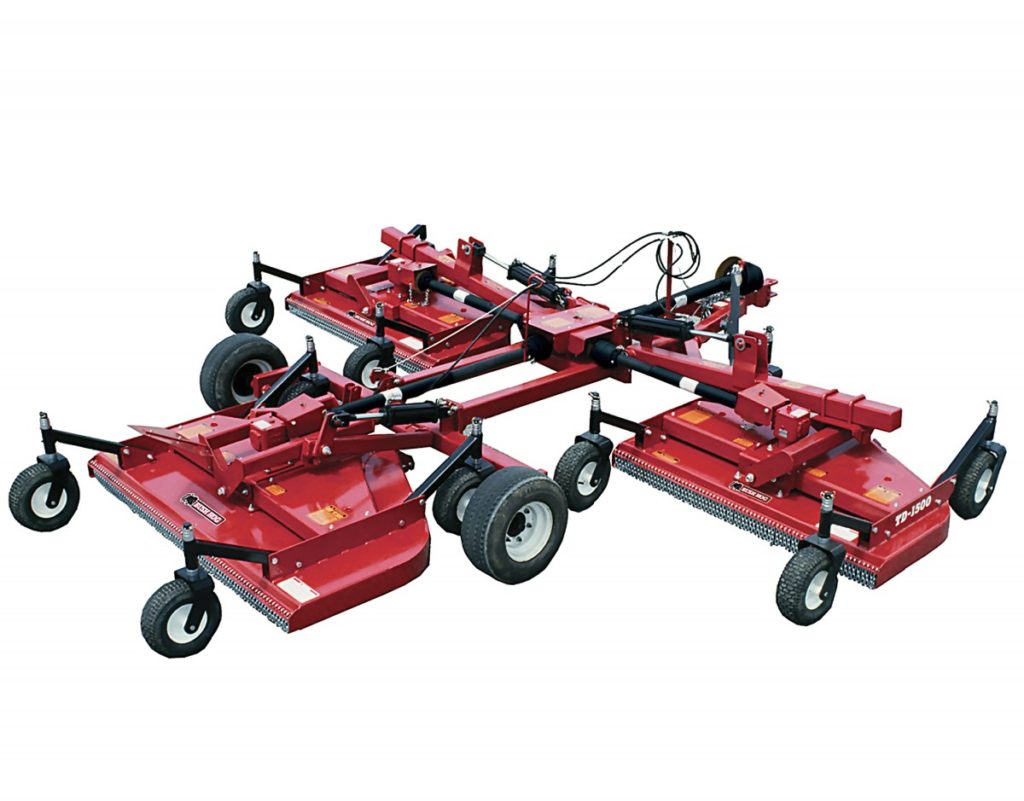

TD Tri-Deck Finishing Mowers
Features
Performance Features
- Smooth, Even Cut, Superior Distribution
- 15 &17-foot Cutting Widths
- Blade Tip Speeds Over 18,000 FPM
- Independent Deck Flotation
- Wing Flex 30° Up And 10° Down
- Adjustable Clevis Hitch
- Standard Front Anti-Scalp Rollers
- Narrow Transport Width
Construction Features
- Reinforced Mainframe Construction
- Heavy-Duty Aramid Cord Belts
- Fabricated 7 Gauge Decks
- Greaseable Blade Spindles
- 5 Year Limited Gearbox Warranty
- Powder Coat Paint
- Large Transport Wheels
- Heavy-Duty Divider Gearbox
Product Features
Heavy-Duty divider gearbox
The 3 x 5-inches anti-scalp front roller is standard equipment for all decks.
The adjustable clevis hitch and standard tongue jack allows one person to attach mower to the tractor.
Specifications
| MODELS | TD-1500 | TD-1700 |
|---|---|---|
| Cutting Width | 15 ft | 17 ft |
| Cutting Height | 1 1/2 to 4 1/2-inches | 1 1/2 to 4 1/2-inches |
| Deck Widths | (1) 72-inches deck, (2) 60-inches deck | (3) 72-inches deck |
| Deck Construction | 7 gauge | 7 gauge |
| Deck Overlap | 6-inches | 6-inches |
| Blade Overlap | 1 1/2-inches | 1 1/2-inches |
| Material Discharge | Rear | Rear |
| Rear Chains | Standard Equipment | Standard Equipment |
| Belt | Single Aramid Cord “B” section per deck | Single Aramid Cord “B” section per deck |
| Gauge Wheels | (12) 13-inches x 5-inches x 6-inches pneumatic w/ roller bearings | (12) 13-inches x 5-inches x 6-inches pneumatic w/ roller bearings |
| Tractor HP Required* | 40 HP minimum | 45 HP minimum |
| Gearbox RPM | 540 | 540 |
| Spindle RPMs | 3316 (60-inches), 2792 (72-inches) | 2792 |
| Transport Dimensions | 95-1/2-inches wide, 95-1/2-inches high, 166-inches long | 95-1/2-inches wide, 107-1/2-inches high, 166-inches long |
| Transport Tires (w/tapered roller bearings) | (2) 23-inches x 9-1/2-inches x 12-inches | (2) 23-inches x 9-1/2-inches x 12-inches |
| Wing Flex | 30° up and 10° down | 30° up and 10° down |
| Hitch | Pull type/clevis, 3 position adjustable | Pull type/clevis, 3 position adjustable |
| Driveline Size | Cat IV 80° CV (main), Cat. III wing | Cat IV 80° CV (main), Cat. III wing |
| Wing Deck Flex (independent of wing frame) | 10° side to side, 10° front to rear | 10° side to side, 10° front to rear |
| Belt Adjustment | Spring loaded idler | Spring loaded idler |
| Blade Tip Speed | 18,231 (60-inches), 18,272 (72-inches) FPM | 18,272 FPM |
| Parking Jack | Standard | Standard |
