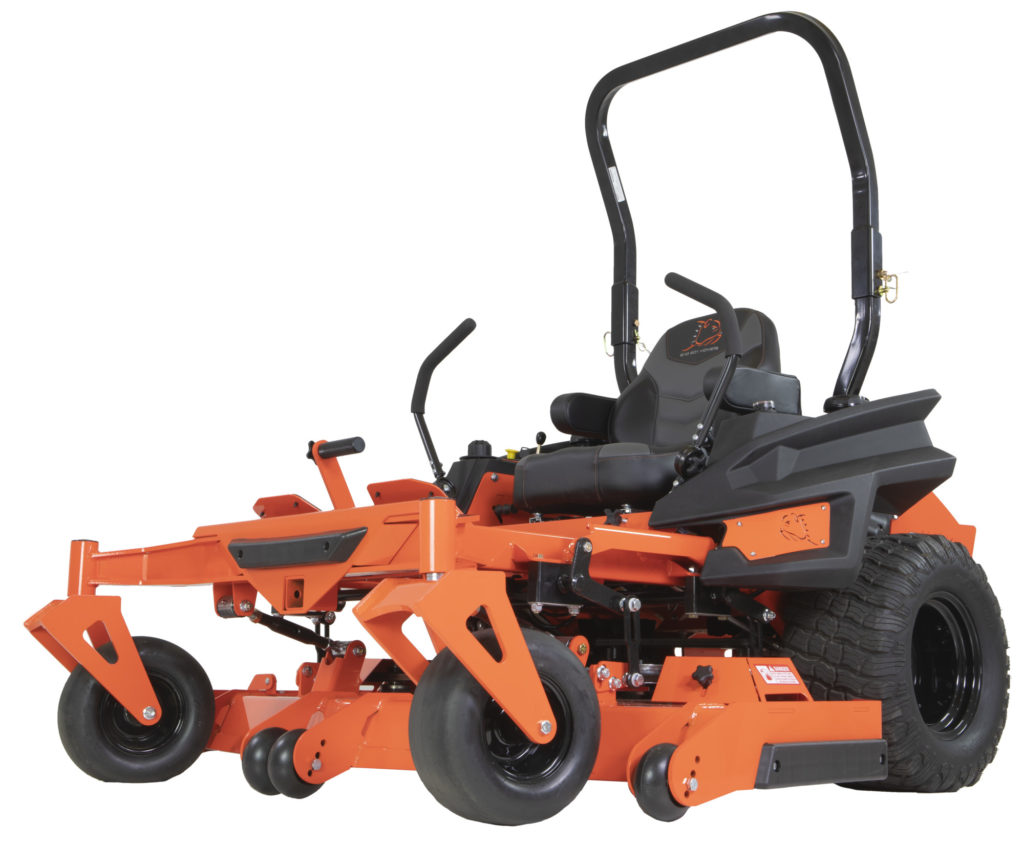

Rebel

POWER-PACKED PERFORMANCE IN A VALUE-PACKED ZERO TURN

Built on the legacy of classic Bad Boy Mower performance and strength, the all-new Rebel Commercial Zero Turn Mower shares the same big-performance platform as our other Outlaw mowers. Featuring large integrated drive systems available across five engine options and three deck sizes, it’s the perfect mix of power professionals demand—and priced at a value homeowners and large landowners have come to expect.

MOWER SPECIFICATIONS
Cutting Width 5400 – 54″; 6100 – 61″
Cutting Height 1″ – 5″ In 1/3″ Increments
Blades 5400 – 1/4″ x 2 1/2″ x 18 3/4″, High Lift, Heat Treated
6100 – 1/4″ x 2 1/2″ x 21″, High Lift, Heat Treated
Lift and Height Adjustment Foot-Assist Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift
Blade Belt Single V-Belt Spring Tension
Anti-Scalp Rollers 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels)
Deck Flotation Floats On Four 1/4″ Deck Hangers
Deck Thickness 1/4″ Thick Solid Steel With Additional 1/4″ Steel Leading Edge And 3/8″ Side Trim
DRIVE SYSTEM SPECIFICATIONS
Transmission Hydro-Gear® ZT-4400 Dual Integrated Hydrostatic Transaxle
Pump Drive Integrated Axial Piston Pump & Motor w/ Gear Reduction
Wheel Drive Integrated with Commercial Grade Gear Reduction
Hydrostatic System Oil 20W50 Motor Oil
Hydraulic Filter 25 Micron, Replaceable Spin-On
Pumps
Hydraulic Coolers 8″ 3,600RPM Cooling Fan; One Per Unit
MOWER DIMENSIONS
Weight 5400 – 1,270 lbs.; 6100 – 1,325 lbs.
Overall Height 50″
Overall Width
Chute Up/Chute Down
5400 – 56 1/2″ / 68 1/2″; 6100 – 63 1/2″/75 1/2″
Overall Length 92″
Tire to Tire Width 5400 – 55 1/2″; 6100 – 55 1/2″
Tires – Front 13 x 6.5 – 6 Smooth Tread
Tires – Rear 24 x 12 – 12 Reaper Tires
Steering Dual Lever Steering, Independent Control
Turning Radius Zero Turn – Zero Degrees, Turns Within Unit Length
Ground Speed (forward) Up To 12 mph
Parking Brake Internal Parking Brake

Also Available In 72″ Cutting Width

MOWER SPECIFICATIONS
Cutting Width  7200 – 72″
Cutting Height 1″ – 5″ In 1/3″ Increments
Blades 7200 – 1/4″ x 2 1/2″ x 24″, High Lift, Heat Treated
Lift and Height Adjustment Foot-Assist Manual Lift With Dial-Style Height Adjustment. Optional Electric Lift
Blade Belt Single V-Belt Spring Tension
Anti-Scalp Rollers 6 Total (4 Double-Bracketed Front Wheels, 2 Rear Wheels)
Deck Flotation Floats On Four 1/4″ Deck Hangers
Deck Thickness 1/4″ Thick Solid Steel With Additional 1/4″ Steel Leading Edge And 3/8″ Side Trim
DRIVE SYSTEM SPECIFICATIONS
Transmission Hydro-Gear® ZT-4400 Dual Integrated Hydrostatic Transaxle
Pump Drive Integrated Axial Piston Pump & Motor w/ Gear Reduction
Wheel Drive Integrated with Commercial Grade Gear Reduction
Hydrostatic System Oil 20W50 Motor Oil
Hydraulic Filter 25 Micron, Replaceable Spin-On
Pumps
Hydraulic Coolers 8″ 3,600RPM Cooling Fan; One Per Unit
MOWER DIMENSIONS
Weight  7200 – 1,375 lbs.
Overall Height 50″
Overall Width
Chute Up/Chute Down
7200 – 74″/86 1/2″
Overall Length 92″
Tire to Tire Width 7200 – 55 1/2″
Tires – Front 13 x 6.5 – 6 Smooth Tread
Tires – Rear 24 x 12 – 12 Reaper Tires
Steering Dual Lever Steering, Independent Control
Turning Radius Zero Turn – Zero Degrees, Turns Within Unit Length
Ground Speed (forward) Up To 12 mph
Parking Brake Internal Parking Brake
