2815 Flex Wing Rotary Cutters

2815 Flex Wing Rotary Cutters

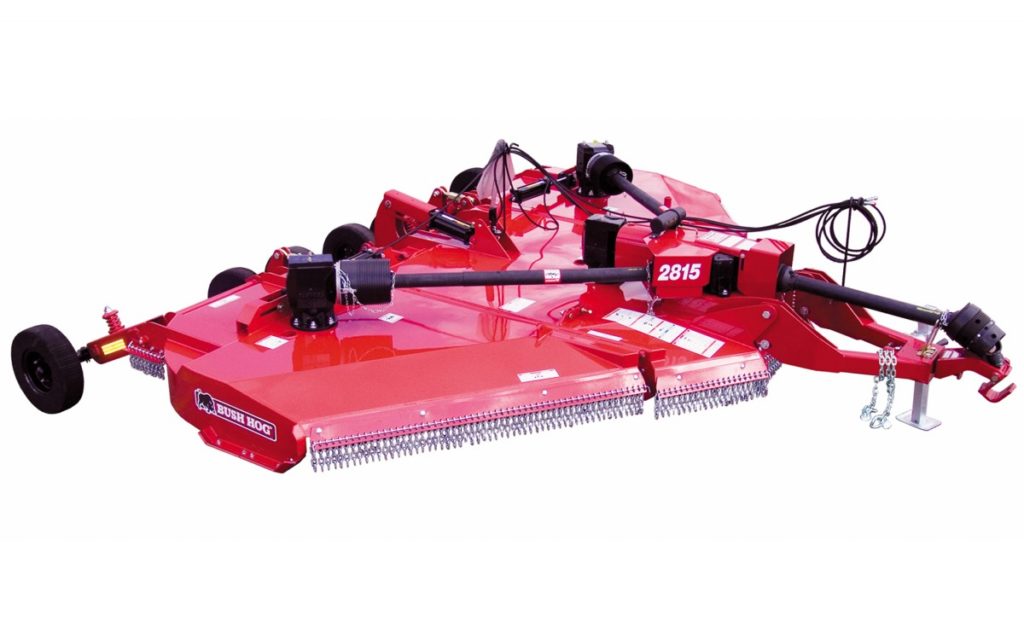

Model 2815

How could Bush Hog® make the best Flex-Wings even better?

Simply put… More value for your investment! The 2815 Flex-Wing is easier to service and has features that maximize performance and durability in all uses. Whether it’s corn stalk shredding, pasture maintenance or roadside cutting, the 2815 is unsurpassed in performance, durability, and reliability.

Features

Performance Features
  • Wing skids are 3/8 inch thick for extended wear and outside edges are turned up at 45 degrees to stop heavy ground contact that might damage the sidebands.
  • Center section blades properly align with center wheels to closely cut out the bottom of ditches.
  • Grease fittings and spring steel bushings at axle pivot points for longer life.
  • Free wing float without movement of the hydraulic cylinder rod is 22 degrees down and 45 degrees up.
  • Optional grass/row crop baffles for improved distribution in grass and corn stalk shredding.
Construction Features
  • Center section axle spindles are centered on the axle arm for equalized loading of vertical forces.
  • Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked.
  • All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points, reducing service times.
  • Greaseable Axle Pivot Points with spring steel bushings
  • Turnbuckle alignment with wing hinge pin ensures long life of turnbuckle and less hinge wear.
  • Powder Coat Paint

Safety Features

  • Improved design of wing sidebands means less damage caused by sideband-to-ground contact.
Product Features
  • The Patent Pending oil sight gauge takes the guess work out of checking the oil. In less than 10 seconds, all three cutting box oil levels can be checked and rechecked as often as you walk around the machine. Never climb onto the cutter again to check the gearbox oil levels.
  • Bush Hog’s E-Z lube drivelines are quick and easy to service. All grease fittings on the PTO CV driveline and wing drivelines align for quick location of grease points. Since all grease fittings on all drivelines are in an up position on every 5th revolution, service times are reduced.

Specifications

Model 2815
*Transport Height: 7-feet 3-inches
**Transport Width: 8-feet 2-inches
Cutting Width: 15-feet
Cutting Height: 2-inches to 14-inches
Hitch: Self Leveling, “Perma-Level”
Minimum Tractor h.p. @ PTO: 60
Side Band: 1/4-inch x 12-inches
Blades: 1/2-inch x 4-inches
Blade Holder: Round
PTO Drivelines: ASAE Cat 6
Wing Drivelines: ASAE Cat 4
Wing Flex: 22° down / 87° up
Wing Free Float: 22° down / 45° up
Splitter Gearbox Rating: 250 HP
Cutting Gearbox Rating: 225 HP
Gearbox Warranty: 6-years
Blade Tip Speed: 16,289 FPM @ 540 PTO / 16,000 FPM @ 1000 PTO
Cutting Capacity: 4-inches diameter
Top Deck, Center Section: 11-gauge
Bottom Deck, Center: 7-gauge
Deck, Wings: 7-gauge
Axle Cushions: Springs @ each wheel
Wing Adjustment: Turnbuckles
Grass/ Crop Distribution: Optional baffles
Wing & Center Hydraulics: Standard
Safety Tow Chain: Standard
*Measured @ max. Transport height
**Measured wing skid to wing skid when folded
