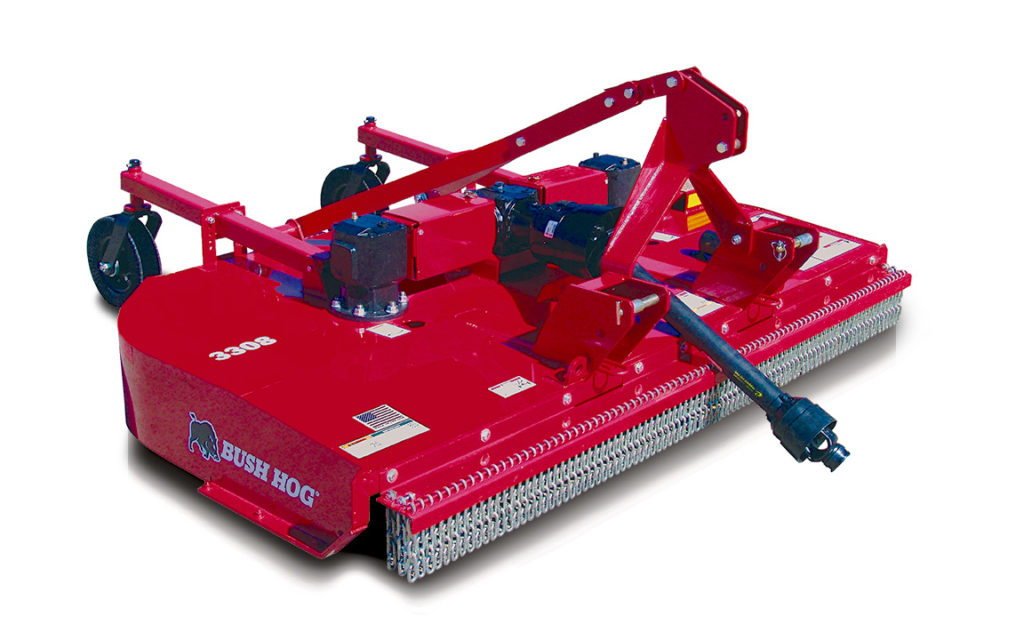

3308 Series Multi-Spindle Rotary Cutters

3308 and 3308SH Series

The 3308 models are designed to cut grass, weeds, and up to 2-inches diameter brush. The lift and semi-mount models are available with economical twin beam axles (shown below) or heavy duty cushioned axles (here). The pull and the 3308SH models have only the heavy duty axles. The 3308 models deliver what you would expect from Bush Hog® which are rugged durability and excellent performance of clean cutting without windrows of cut material. The 3308SH has a hydraulic cylinder to offset the cutter 13-inches to the right of the tractor centerline. Extending farther beyond the tractor tires is ideal in orchards or hard to reach areas near ditches. Deep sidebands result in more volume area beneath the deck for extra heavy growth conditions. Bush Hog®—Performance You Can Count On.

Features

Performance Features
  • 8-feet 3-inches Cutting Width
  • Lift, Pull & Semi-Mount Models
  • SH Model Ideal For Orchards
  • Fiber Disc Cross Shafts
  • Heavy Rugged Deck Structure
Construction Features
  • 10-Gauge Deck Construction
  • 7-Gauge Strongbacks
  • 1/4-inch Sidebands
  • Replaceable Wide Skids
  • 5 Year Gearbox Limited Warranty
  • Powder Coat Paint

Safety Features

  • Safety Tow Chain (Standard on Pull Model)
  • Safety Shields Combination of Front and Rear Chains and Rear Band
Product Features
  • 3308SH Model — Also available in a pull model with self leveling tongue and the heavy duty axle (fixed axle arms not casters as shown above), a selection of 20-inches solid laminated tires or used aircraft tires and manual or hydraulic height control.
  • Optional Heavy Duty Axle On Lift & Semi-Mount Models
  • Cross Shaft From Splitter Box To Outboard Gear Box

Specifications

Model 3308 3308SH
Cutting Width 8-feet 3-inches 8-feet 3-inches
Cutting Capacity 2-inches diameter 2-inches diameter
Cutting Height 2 to 13-inches 2 to 13-inches
Dimensions (width x length) 8-feet 10-inches x 7-feet, 11-inches (Lift),12-feet 9-inches (Pull) 8-feet 10-inches x 7-feet, 11-inches (Lift), 12-feet 9-inches (Pull)
Type Hitch ASAE Cat. 1 & 2 Standard & Quick Hitch ASAE Cat. 1 & 2 (No top link) Semi Mount, 0 to 13-inches Offset
Deck Thickness 10-Gauge 10-gauge
Side Bands 1/4-inches x 12-inches 1/4-inch x 12-inches
Minimum Tractor HP 50 PTO (Lift), 40 PTO (Pull) 40 PTO (Semi-Mount)
Driveline ASAE Category 4 with Slip Clutch ASAE Category 4 with Slip Clutch
Cross Shaft Fiber Disc Fiber Disc
Gearbox HP Center, 140, Outboard, 130 Center, 140, Outboard, 130
Tractor PTO Speed 540 RPM 540 RPM
Driveline Protection 4 Plate PTO Slip Clutch 4 Plate PTO Slip Clutch
Height Adjustment Heavy Duty Axle – Manual or Hydraulic Heavy Duty Axle – Manual or Hydraulic
Blade Holder(s) Round Round
Blades 1/2-inch x 4-inches – Uplift 1/2-inch x 4-inches – Uplift
Blade Tip Speed 16,121 FPM/540 RPM 16,121 FPM/540 RPM
Blade Overlap 5-inches 5-inches
Tires Laminated, Airplane Laminated
Axles Selection: Rigid Twin BeamAxle Bundle or Heavy DutyAxle Bundle with ShockAbsorber on Lift or Semi-Mount; Hvy Duty on Pull Type Heavy Duty Axle Bundle with Shock Absorber
Deflectors Combination of Front and Rear Chains and Rear Band Combination of Front and Rear Chains and Rear Band
Safety Tow Chain Standard for Pull Model N/A
Approximate Weight 1806-lbs. 1,944-lbs.
Warranty 1-year limited warranty with a 5-year gearbox limited warranty 1-year limited warranty with a 5-year gearbox limited warranty
Features • Standard Slip Clutch • Standard Slip Clutch
• High Blade Tip Speeds • High Blade Tip Speeds
• Deep Sidebands • Deep Sidebands
• Quick-Detach Gearbox Shields • Quick-Detach Gearbox Shields
