SQ84T Series Rotary Cutters

SQ84T Multi-Spindle Rotary Cutters

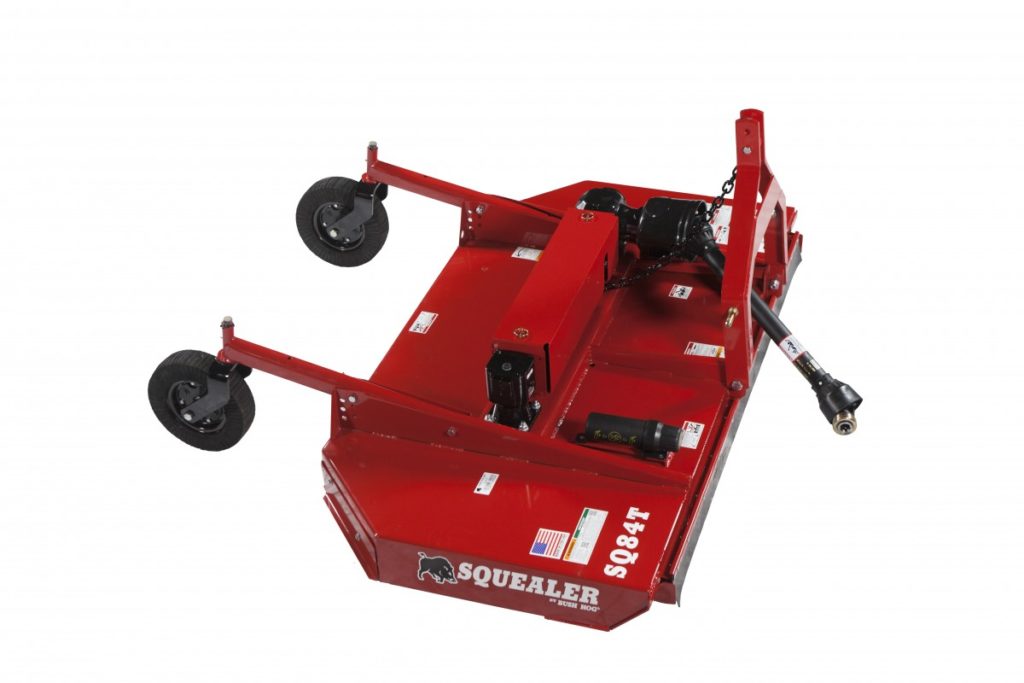

SQ84T Squealer® with Twin Gearboxes and 9-inch offset.

The SQ84T is a lighter 7-feet twin spindle cutter for 35 to 50 PTO HP tractors. This close-coupled unit is ideal for small pastures and orchard maintenance. Cuts up to 1 1/2-inches diameter saplings.

No matter what your mowing or cutting needs, one of Bush Hog’s multi-spindle rotary cutters is the perfect choice… the right implement for your tractor and cutting requirements. The wide selection of models, sizes, cutting widths, and hitches offered by these rotary cutters makes it easy to select the perfect tool for your specific job and budget. And our offset versions are ideal for orchard work.

Features

Performance Features
  • Bush Hog® Performance in an Economical Pasture Mower
  • 9″ Offset Hitch allows for easier cutting underneath trees
  • 7-foot Cutting Width
  • 1 1/2″ Cutting Capacity
  • Rubber cushioned axles gives load protection when working on rough terrain
  • Tough oval blade pans are standard equipment
Construction Features
  • Available in a 9″ Offset Lift Mount Hitch
  • Floating A-Frame Hitch
  • 5 Year Gearbox Limited Warranty
  • 7 Gauge Box Steel Strongbacks
  • Fully-Shielded Drivelines with Tough Slip-Clutches Standard
  • Deep Side Bands allow more movement of material under the deck ensuring better cutting performance
  • Oval Blade Pans Standard

Safety Features

  • Front Rubber Belting
  • Rear Metal Band

Specifications

Model SQ84T
Cutting Width: 7-feet
Cutting Capacity: Up to 1 1/2-inches Diameter
Cutting Height: 2 to 12-inches
Dimensions (width x length): 7-feet 3-inches x 6-feet 3-inches
Type Hitch: Category I Hitch 9 inch offset Lift only
Deck Thickness: 11-gauge
Side Bands: 7 3/8-inches x 11-gauge
Minimum Tractor HP 35–50 PTO
Driveline ASAE Category 3
Cross Shaft Rubber Element
Gearbox HP 60 Main 45 Outboard
Tractor PTO Speed; 540 RPM
Driveline Protection Slip Clutch
Height Adjustment Adjustable
Blade Holder(s) Oval type
Blades 1/2-inch x 4-inches uplift
Blade Tip Speed 11,500 FPM
Tires: Laminated
Axles Adjustable
Deflectors: Standard Front Belting and Rear Bands
Approximate Weight: 720-lbs.
Warranty: 1-year limited warranty with a 5-year gearbox limited warranty
Features: • Floating A Frame Hitch
