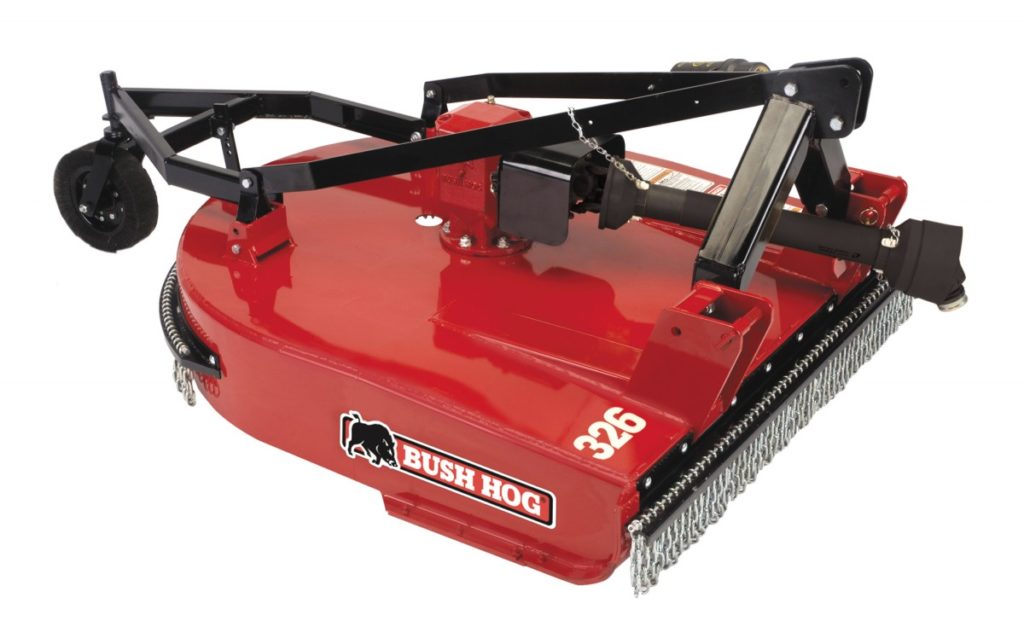

BH 320 Series Rotary Cutters
Bush Hog®’s “Original” Heavy-Duty Cutters Are Better Than Ever
Bush Hog®’s 300 “Original” Series Rotary Cutters helped build the Bush Hog® reputation for performance you can count on. Now the new Bush Hog® 320 “Original Plus” Series Rotary Cutters offer even more performance the first day on the job and for years to come.
Features
Performance Features
- Sloped Deck. Improved sloped deck design sheds water and debris to increase deck life.
- 326 and 327 gearboxes are the same rugged gearboxes used on the Bush Hog® flex wing cutters. Rated at 210 HP, they have the highest rating in their class.
- Blade pans are 7-gauge steel formed in dished shape for extra strength.
- An integral part of the cutter’s structure, the gearbox stand runs between the strongbacks.
- Rugged ASAE Cat 5 drivelines are standard on both 320 Series “Original Plus” cutters.
- 5-year limited gearbox warranty.
- Replaceable Skids
Construction Features
- Decks are reinforced with internal 7-gauge steel strongbacks that run the full length of the deck tying together the entire structure with the gearbox stand.
- 326 and 327 decks are 7-gauge thick steel. Strongbacks are 7-gauge steel.
- Sidebands are strong and deep. Formed of 1/4-inch thick steel, they are 12 1/2-inches deep.
- Heavy-duty tail wheel assemblies are standard on both models. 327 comes equipped with a heavy-duty axle and dual wheels for both lift and pull models. Both lift and pull models come with laminated tires that are built for rugged conditions.
- Built of heat treated alloy steel, blades are genuine Bush Hog®
Product Features
TOUGH Category 5 Driveline
Look for the Bush Hog® embossed on the gearbox. Only Bush Hog® cutters are equipped with Bush Hog® designed gearboxes. The Bush Hog® 320 “Original Plus” Series heavy-duty cutters feature the highest rated gearboxes in their class—210 HP.
TOUGH Tail Wheel Assembly
TOUGH Blade Pans, Deck Reinforcements, and Heavy-Duty Gearbox Stand Equipped with Bush Hog® Blades
327 Lift Type Cushioned Axle
Specifications
| Model | 326 | 327 |
|---|---|---|
| Cutting Width | 6-feet | 7-feet |
| Cutting Capacity | 4-inches diameter | 4-inches diameter |
| Cutting Height | 2 to 12-inches | 2 to 12-inches |
| Dimensions (width x length) | 78 x 118 1/2-inches | 90 x 131-inches |
| Type Hitch | HD 3 Point Cat. I, Cat. II Standard & Quick Hitch | HD 3 Point Cat. II, Cat. III Standard & Quick Hitch |
| Deck Thickness | 7-gauge | 7-gauge |
| Sidebands | 1/4x 12 1/2-inches | 1/4x 12 1/2-inches |
| Driveshaft | ASAE Category 5 | ASAE Category 5 |
| Gearbox | Heavy Duty 210 HP | Heavy Duty 210 HP |
| Tractor PTO Speed | 540 RPM | 540 RPM |
| Driveline Protection | Slip Clutch Standard | Slip Clutch Standard |
| Blade Holder(s) | Round | Round |
| Blades | 1/2 x 4-inches heat treated | 1/2 x 4-inches heat treated |
| Blade Tip Speed | 13,996 FPM | 11,875 FPM |
| Tires | Laminated | Laminated, dual- lift |
| Minimum Tractor HP | 60 PTO | 70 PTO |
| Front and Rear Deflectors | Chain Shielding is Standard, Single Row or Double Row | |
| Safety Shielding | Single or Double Row of Chains | Single or Double Row of Chains |
| Approximate Weight | 1400-lbs. | 1950-lbs. – lift |
| Warranty | 1 year limited warranty with a 5 year gearbox limited warranty | |
| Options | Manual or hyd. adjustment | |
| FEATURES | Floating A Frame | |
