11003-HP-CV

The ProPlus™ adjustable arc and continuous full-circle gear driven rotor comes standard with nine numerically coded interchangeable nozzles. Excellent nozzle performance delivers an exceptional fall out pattern. In independent testing by C.I.T., the ProPlus™ delivered up to 90% uniform coverage.

Tough, proven and advanced, the ProPlus™ is the leader in it’s class. Set it and forget it. Arc Memory Clutch returns the rotor to its preset position. Technology that works for you.

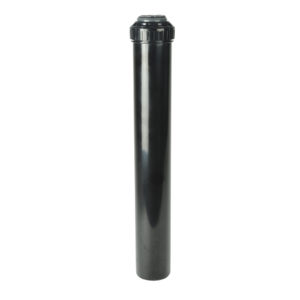

This model contains a check valve and high pops to 12 inches.

FEATURES AND BENEFITS:

• Revolutionary Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
• 5" (12,7 cm) Riser – Perfect for grasses with thick thatch.
• 3/4" (1,9 cm) Inlet – Replaces all standard rotors.
• 2N1 Adjustable or Continuous Rotation – Provides a full range adjustment from 40° to a continuous full circle.
• Patented Arc Set Degree Markings – Clearly indicates current watering pattern & simplifies arc set adjustment.
• Arc Memory Clutch – Prevents internal gear damage and returns rotor to its prior setting automatically if nozzle turret is forced past its stop.
• Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35 year history.
• Ratcheting Riser – Allows for easy adjustment of your fixed starting position with a simple turn of the riser.
• Rubber Cover – Seals out dirt, increases product durability.
• Wide Selection of Nozzles – Including standard and low angle, provides flexibility in system design.

SPECIFICATIONS:

• Inlet: (1,9 cm) 3/4" Threaded NPT
• Arc Adjustment Range: 40° to Continuous 360°
• Flow Range: .5 – 10.0 GPM (1,9 – 37,8 LPM)
• Pressure Rating: 20 – 70 PSI (2 – 4,8 bars)
• Precipitation Rate: .12 – .89 in/hr (3 – 26 mm/hr) (Depending on Spacing and Nozzle Used)
• Overall Height (Popped Down): 7 1/2" (19 cm) (17" (43,2 cm) for High Pop Model)
• Recommended Spacing: 28' – 44' (8,5 – 13,2 m)
• Radius: 22' – 50' (6,7 – 15,3 m)
• Nozzle Trajectory: 26°
• Low Angle Nozzle Trajectory: 12°
• Standard and Low Angle Nozzles Included
• Riser Height: 5" (12,7 cm) and 12" (30,5 cm)
