78012

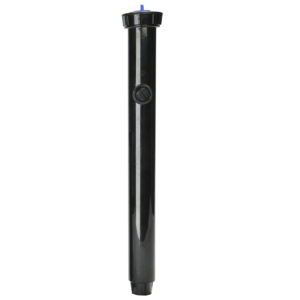

12'' Pro-S Spray w/ Male Riser and Flush Cap

The result of precision engineering and extensive field testing by contractors around the world, the Pro-S™ is designed to provide long life and outstanding performance. These sprays are distinguished by robust construction, rugged body and cap, co-molded seal and heavy-duty retraction spring. Built with the contractor in mind. The co-molded wiper seal ensures proper operation time after time with minimal flow by. Compatible with all standard female-thread nozzles.

This model is the 12 inch pop up.

FEATURES AND BENEFITS:

  • Co-Molded Wiper Seal – Ensures a leak free, full pop-up operation even under low-pressure situations. Cartridge design allows for easy removal and cleaning. Treated with UV inhibitors for long life. Seal is microbe resistant to reduce degradation and stick-ups.
  • Accepts Female Threaded Nozzles
  • Ratcheting Riser – Permits quick, easy alignment of spray pattern.
  • Heavy-Duty Retraction Spring – Strongest spring in the industry for positive retraction in all soil conditions.
  • Side Inlet – Standard on 12" (30,5 cm) model.
  • NEW! 6" model available with or without side inlet.
  • Wide Selection of Sizes – Available in 2", 3", 4", 6" and 12" (5, 7,5, 10, 15 and 30,5 cm) models.
  • Pre-Installed Flush Cap
  • Optional In-stem Pressure Regulator – Available for 4", 6" and 12" (10, 15 and 30,5 cm) models, factory preset at 40 psi (2,8 bar).
  • Optional In-stem Check Valve – Installs in the field, holds up to 10' (3 m) of head pressure.
  • Optional Pre-installed Nozzle Guard
  • Fits in Rainbird 1800 Can

SPECIFICATIONS:

  • Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
  • Flow-by: 0 – 8 psi (0,6 bar) 0.20 GPM (0,76 LPM)
  • Inlet: 1/2" (1,3 cm) Female Thread NPT
  • Overall Body Height:
    • 78002 – 4" (10 cm)
    • 78003 – 4 7/8" (12,4 cm)
    • 78004 – 6" (15 cm)
    • 78006 – 9 3/8" (23,4 cm)
    • 78012 – 16" (40,7 cm)
