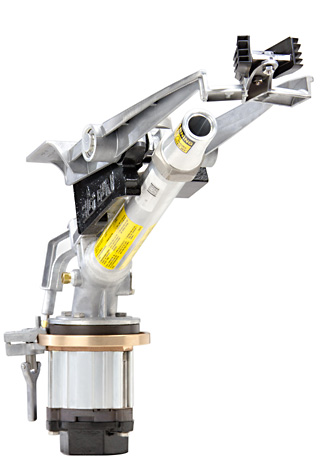

150 Series Big Gun
150 Series Big Gun®
THE 150 SERIES IS A PERFECT FIT FOR SOLID SET IRRIGATION, TRAVELER IRRIGATION AND DUST SUPPRESSION.
Anodized, Powder Coated or Stainless Steel units are available, which makes this a great option for mining or wastewater applications.
The Nelson 150 Series Big Gun comes as a Full Circle (21° or 24° trajectory), or Part Circle (21°, 24°, 27°, 43°, or 15°-45° adjustable trajectory) sprinkler. Taper, Taper Ring, or Taper Bore Nozzles are available.
ADD-ON KITS INCLUDE:
Counterbalance Kit, Secondary Nozzle Kit, and Stream Straightener Vane. There is substantial thrust on a riser, so use a 3” valve minimum.
CONNECTION OPTIONS INCLUDE
Nelson, Euro or ANSI/DIN Flange (Also, Nelson Flange to Female Adapters).
PERFORMANCE
100-550 GPM(23-150 M³/H)
50-120 PSI(4-9 Kg/cm²)
SR150 (Part Circle)
F150 (Full Circle)
Big Gun Sprinklers Built for Demanding Industrial Environments
Adjusting the Part Circle Big Gun
Big Gun Robotic Welder
SR Big Gun Drive Action
Taper Bore Nozzle Taper Bore Nozzle(#100T,#150T,#200T) |
Taper Ring Nozzles The Taper Ring Nozzle (#TR75, #TR100, #TR150) combines the changeability of a ring nozzle with some of the efficiency of a Taper Bore Nozzle. |
Ring Nozzle Set Ring Nozzle Set (#100R, # 150R, #200R) |
Secondary Nozzle Secondary nozzles can be fitted to all Nelson Big Guns and are used to apply water in-close. This is generally not desirable when Big Guns are used on travelers but may be desirable in solid set applications. |
Solid Set Big Gun / Control Valve Combo Specify ASNI flange + B17 Ex: A2”B17C2D_E_H3 for 75 & 100 Series Big Guns A3”B17C2D_E_H3 for 150 Series Big Guns A4”B17C2D_E_H3 for 200 Series Big Guns - (B18 is an additional option for the 200 Series Big Gun. This is for the cast iron valve while B17 is aluminum.) |
Wedge Kit The Wedge Kit (#11095, #11098, #11358, #11359) increases the angle of the trajectory. |
Counter Balance Kit This kit is used to help balance the Big Gun on severely sloping terrain. It allows for even rotation when riser is tilted and minimizes any brake variations while reducing stress on the lower unit. |
Stream Straightener Vane for Big Gun Stream Straightener Vane (#600V) helps reduce stream turbulence and increases the throw radius. |
