200 Series Big Gun®

THE 200 SERIES IS A PERFECT FIT FOR RECLAIMED WATER AND OTHER APPLICATIONS WHERE MAXIMUM FLOW IS DESIRED.

Anodized or Powder Coated units are available.

The Nelson 200 Series Big Gun comes as a Full or Part Circle sprinkler with a 21°, 24°, or 27° trajectory. Taper Bore or Ring Nozzles are available.

Add-On Kits Include:

Secondary Nozzle Kit (standard) and 12° Wedge Kit (SR200 only). There is substantial thrust on a riser, so use 4'' valve minimum.

Connection Options Include

Nelson, Euro, or ANSI/DIN Flange (Also, Nelson Flange-to-Female Adapters).

PERFORMANCE

250-1200 GPM(55-275 M³/H)

60-130 PSI(4-9 Kg/cm²)

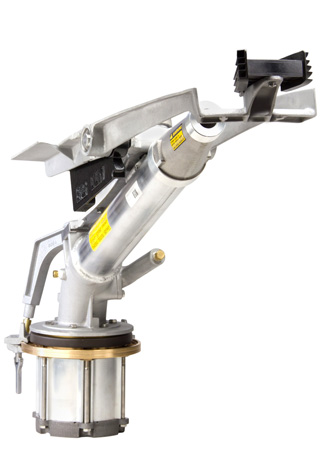

SR200 (Part Circle)
F200 (Full Circle)

Taper Bore Nozzle

Taper Bore Nozzle(#100T,#150T,#200T)



Secondary Nozzle

Secondary nozzles can be fitted to all Nelson Big Guns and are used to apply water in-close. This is generally not desirable when Big Guns are used on travelers but may be desirable in solid set applications.

Ring Nozzle Set

Ring Nozzle Set (#100R, # 150R, #200R)



Manure/Large Nozzle Kit

Designed to increase rotation speed when larger nozzles are used (1.75" and 1.9"). This kit is particularly useful when pumping manure and other slurries with densities different than water.

Wedge Kit

The Wedge Kit (#11095, #11098, #11358, #11359) increases the angle of the trajectory.



Solid Set Big Gun / Control Valve Combo

Specify ASNI flange + B17 Ex: A2”B17C2D_E_H3 for 75 & 100 Series Big Guns A3”B17C2D_E_H3 for 150 Series Big Guns A4”B17C2D_E_H3 for 200 Series Big Guns - (B18 is an additional option for the 200 Series Big Gun. This is for the cast iron valve while B17 is aluminum.)
