3202-220

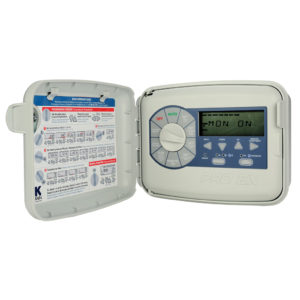

PRO EX 2.0 MODULAR IRRIGATION CONTROLLER W/4 STATION MODULE, 220V PRE-WIRE

The Pro EX 2.0 Modular Irrigation Controller can be easily expanded from 4 to 16 stations. The largest backlit display on the market, user-friendly programming and responsive touch pad takes Pro EX 2.0 to a whole new level for irrigation controllers. The new optional remote capability expands irrigation control right in your hand.

This model is prewired with a 220V.

FEATURES AND BENEFITS:

  • Hot-swappable 4 Station Modules – Allows simple controller upgrades from 4 to 16 stations while controller is in operation.
  • Large Backlit LCD Screen – Permits maximum viewing for all installations.
  • AM/PM or 24 Hour Clock Settings – Allows user to choose the time format that is most desirable.
  • Program Display – Full program screen display of watering days, number of start times, number of stations and special programming.
  • Flexible Operation – Manual or remote operation.
  • System Test – Allows a full system check for valve operation.
  • Manual Start – Allows manual program operation at the push of a button. nWire Management System – Is made easy with vertical station terminal strips allowing full use of the cabinet.
  • Permanent Memory – Non-volatile memory saves program during power outages.
  • Remote Programming – 4 AAA batteries allow for remote programming and LCD viewing.
  • Wireless Module Connector – Allows for optional installation of wireless communication.
  • Diagnostic Circuit Breaker – Identifies and isolates stations with valve or wiring problems while allowing remaining program to continue.
  • Advanced Diagnostic – Visual and/or audible alerts when programming errors or other conditions have been detected and are preventing operation.
  • Locate Feature – Aids in locating buried valves in field.
  • Station Delay/Overlap – Permits additional time between stations or dual operation for everyday hydraulic issues like well recovery, slow closing valves and water hammer.
  • Rain Sensor Ready – Allows programming of individual station(s) operation to be controlled by sensor.
  • Sensor Bypass Switch – Global override of active sensor for all stations.
  • Master Valve/Pump Start Ready – Permits programming for individual station(s) operation as needed.
  • Valve Test Terminal (VT) – Quick and easy matching of field wires with station during installation.
  • Dedicated Sensor Terminals – Enables direct sensor installation for maximum watering control.
  • Default Programming – Allows program to be saved and recalled without having to reprogram the controller.
  • Permanent Day Off – Set any day of the week, regardless of programming, as a non-watering day.
  • Seasonal Adjust – Conserves water by allowing quick and easy global adjustment of watering times from 10-200%.

SPECIFICATIONS:

  • OPERATING SPECIFICATIONS
    • Station Run Times: 1 second to 6 hours for all stations
    • Number of Programs: 3
    • Number of Automatic Start Times: 4 per program
    • Program Watering Schedules: Custom (day of the week), Interval (1-31 days), Odd (odd calendar days), Even (even calendar days)



  • ELECTRICAL SPECIFICATIONS
    • Power Input: 110VAC ± 10% 60Hz, 240VAC ± 10% 50Hz
    • Power Output: 24VAC 1.25Amp
    • Power Backup: Lithium coin-cell battery maintains time and date during primary power outages while the 4 AAA batteries allow for remote programming and LCD viewing.
    • Multi-Valve Operation: Up to three 24VAC, 7VA solenoid valves
