13003-RCW

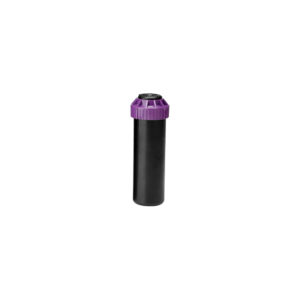

The Reclaimed Water MiniPro is a gear-driven, rotary type sprinkler, capable of covering an area of 18' to 36' (5.5 to 11.0 M) radius at nozzle pressure of 30 to 50 PSI (2.1 to 3.5 bar) with a discharge rate of .75 to 3.3 GPM (2.84 to 12.5 LPM).  The MiniPro is supplied with five (5) numerically coded interchangeable nozzles. Sprinkler nozzle trajectory is 26°.  The sprinkler has a stainless steel radius adjustment screw.

Perfect for small lawn and landscape areas and for replacing fixed spray zones.

Worldwide regulations frequently require reclaimed water usage sites to use components identified with a purple cap or collar.

FEATURES AND BENEFITS:

• • Revolutionary Patented Top Arc Set – Simplified arc set allows for wet or dry adjustment in seconds.
  • 1/2" (1,3 cm) Inlet – Replaces all standard mini rotors and pop-up sprays.
  • Adjustable to 360° – Provides a full range of adjustment from 40° to 360°.
  • Patented Top Arc Set Degree Markings – Clearly indicates the current watering pattern and simplifies arc set adjustment.
  • Time Proven Patented Reversing Mechanism – Assures continuous reverse and return…over a 35 year history.
  • Ratcheting Riser – Allows for easy adjustment of your left starting position with a simple turn of the riser.
  • Rubber Cover – Seals out dirt and increases product durability.
  • Wide Selection of Nozzles – Provides flexibility in system design.
  • Optional Check Valve – Prevents low head drainage.
  • Five Year Limited Warranty.

SPECIFICATIONS:

• Inlet: 1/2" (1,3 cm) Threaded NPT
• Arc Adjustment Range: 40° – 360°
• Flow Range: 0.8 – 3.3 GPM (3 – 12,5 LPM)
• Pressure Rating: 20 – 70 PSI (1,4 – 4,8 bar)
• Precipitation Rate: .26 – .60 in/hr (6,6 – 15,24 mm/hr) (Depending on Spacing and Nozzle Used)
• Overall Height (Popped Down): 4", 6", 12" (12,2 cm, 15,2 cm, 30,5 cm)
• Recommended Spacing: 17' – 34' (5,2 – 10,4 m)
• Radius: 18' – 36' (5,5 – 11 m)
• Nozzle Trajectory: 25°
• Riser Height: 4", 6" or 12" (12,2 cm, 15,2 cm, 30,5 cm)
