PC Series Online Emitters
PC Series Online Emitters
For Agricultural Irrigation
Rain Bird pressure compensating online emitters offer precise water application with a self-flushing action at an excellent value.
Pressure Compensating
- Provides superior flow from 15 to 50 psi (1 to 3.4 bar)
- Ideal for undulating terrain or systems with a large variation in pressure

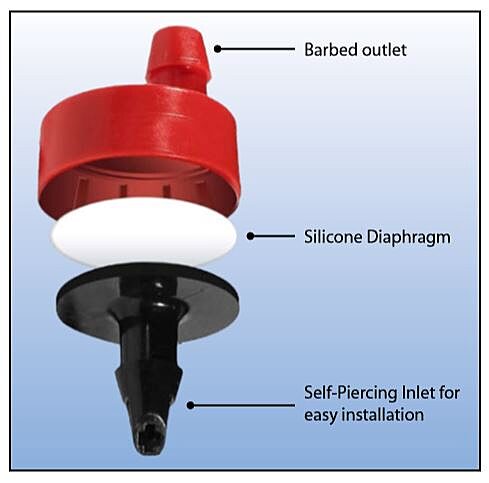

Barbed Outlet
- Use MQT ¼" Distribution tubing to direct water to plant root for maximum accuracy
Silicone Diaphragm
- Best material for long-term exposure to ag chemicals
- Superior flush of debris when system is activated
Self-Piercing Inlet
- One-step installation saves labor costs
Turbulent Flow Path
- Three-dimensional geometry to keep grit in suspension as it moves through the emitter
- Emitter body and inlet made of materials to withstand chemical and UV degradation
- No squirting – puts water at the desired spot
- Color-coded outlet bar identifies flow rate
Economical
- Compact design for low cost
- Energy savings

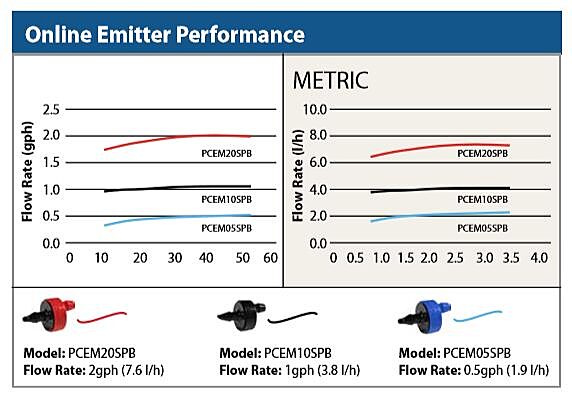

Models
| Flow Rate (GPH) | Flow Rate (l/h) | Inlet Type | Outlet (Color) | Recommended Filtration | Part Number |
| 0.5 | 1.9 | Self-Piercing | Barb (Blue) | 200 mesh (75 micron) | A118410 |
| 1.0 | 3.8 | Self-Piercing | Barb (Black) | 150 mesh (100 micron) | A118411 |
| 2.0 | 7.6 | Self-Piercing | Barb (Red) | 150 mesh (100 micron) | A118412 |
