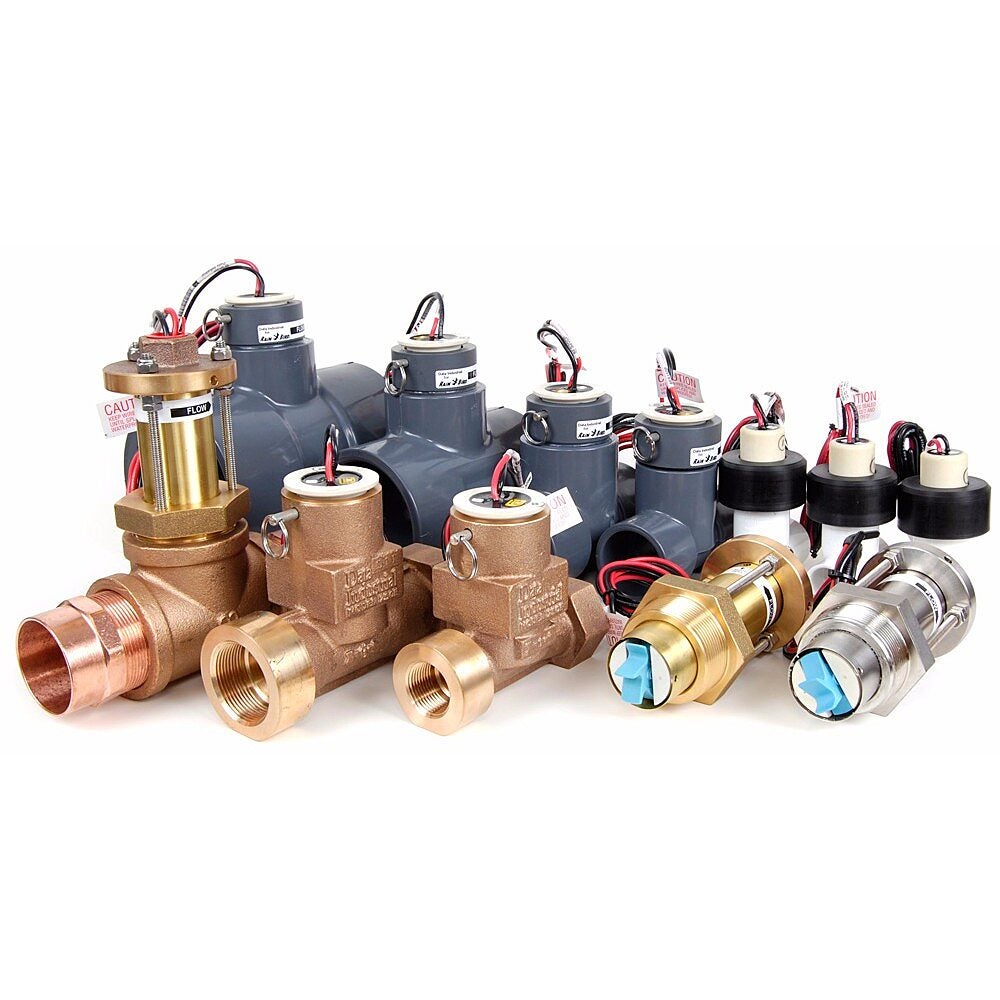

Rain Bird flow sensors send flow data to central control or stand-alone controller systems for precise and accurate flow monitoring. Rain Bird flow sensors are available with NPT and BSP ends.

Rain Bird flow sensors enable you to capitalize on the advantages of Flow Management functionality. Use Rain Bird Flow Sensors with Rain Bird Maxicom², SiteControl and IQ v2.0 central control applications, or in standalone systems using Rain Bird ESP-LXD, ESP-LXME and ESP-LXMEF controllers, to benefit from:

  • Flo-Watch™. Flo-Watch constantly monitors for low flow and excess flow conditions caused by broken lines or heads, automatically quarantines and shuts down the problem area, and continues to irrigate non-affected areas. Saves water, saves plant material, and enables irrigation programs to continue and complete.
  • Learned Flow. The controller automatically learns station flow rates resulting in more accurate flow rates. The automatic collection prevents you from having to manually enter data from drawings, or physically visiting each valve to collect flow data and manually entering the data into a controller.
  • FloManager®. FloManager determines the optimal station irrigating sequence. The system runs at its fullest capacity until programs are complete. The controller automatically selects and runs multiple valves at the same time within hydraulic parameters, allowing for shorter water windows.
Sensors
  • Simple six-bladed impeller design
  • Designed for outdoor or underground applications
  • Available in PVC, brass or stainless steel construction
  • Available in NPT and BSP ends
  • Pre-installed in tee or insert versions
Transmitters
  • Reliable solid-state design
  • Display or signal-alone versions
  • Easy-to-program, menu-driven design
  • Programmable from a laptop computer (PT322)
  • Operates with both MAXILink™ and (hard wire) two-wire satellite systems
  • Mounted in optional NEMA enclosure (3002 only)
Sensors
  • Accuracy: +- 1% (full scale)
  • Velocity: 1/2-30 feet (0.15 - 9.2 meters) per second depending on model
  • Pressure: 400 psi (27.5 bars) (max) on metal models; 100 psi (6.9 bars) (max) on plastic models
  • Temperature: 220° F (105° C) (max) on metal models; 140° F (60° C) (max) on plastic models
Transmitters
  • Input required:
    • 12-30 VDC/VAC on PT322
    • 12-24 VAC/VDC on PT 3002
  • Output: Pulse output
  • Operating Temp: -4° F-158° F (-20° C to 70° C)
  • Units: Domestic and International units available on PT3002
Dimensions
  • PT322: 3.65" x 1.75" x 1.0" (93mm x 44m x 25mm)
  • PT3002: 3.78" x 3.78" x 2.21" (96mm x 96mm x 56mm)
  • FS100P: 3.50" x 3.94" x 1.315" (89mm x 100mm x 33mm)
  • FS150P: 5.0" x 5.16" x 2.38" (127mm x 131mm x 60mm)
  • FS200P: 5.63" x 5.64" x 2.88" (143mm x 143mm x 73mm)
  • FS300P: 6.50" x 6.83" x 4.23" (165mm x 173mm x 107mm)
  • FS400P: 7.38" x 7.83" x 5.38" (187mm x 199mm x 137mm)
  • FS100B: 5.45" x 4.94" x 2.21" (138mm x 126mm x 56mm)
  • FS150B: 6.5" x 5.19" x 2.5" (165mm x 132mm x 64mm)
  • FS200B: 4.25" x 8.35" x 2.94" ( 108mm x 212mm x 75mm)
  • FS350B: 7.13" x 3" (diameter) (181mm x 76mm (diameter))
  • FS350SS: 7.13" x 3" (diameter) (181mm x 76mm (diameter))



  • For ESP-LXD Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
  • For ESP-LXMEF Systems, the Flow Sensor is attached to the FSM-LXME Flow Smart Module
  • For (Hard Wire) Two-Wire Satellite Systems (Maxicom²® and SiteControl), the Flow Sensor is installed with a Pulse Transmitter and a Rain Bird Pulse Decoder (DECPULLR)
  • For Link Radio Satellite Systems (Maxicom² and SiteControl), the Flow Sensor is installed with a Pulse Transmitter (no pulse decoder required)
  • For ESP-SITE Satellite Systems (Maxicom²), the Flow Sensor is installed with a Pulse Transmitter (no decoder required)
  • For SiteControl Decoder Systems, the Flow Sensor is installed with a Two-Wire Decoder Sensor Decoder (SD210TURF)
  • Surge protection (FSSURGEKIT) is recommended for Maxicom and SiteControl systems – One at the Pulse Transmitter, and if more than 50’ of wire run, one at the Flow Sensor. FSSURGEKIT is not compatible with ESP-LXMEF and ESP-LXD Controllers
