Advanced Single-Jet Technology Water Meters
Rain Bird’s ICWM Series of Water Meters are engineered to measure water use with sustained accuracy at both high and low flow rates. ICWM uses a single measuring element that can record flows that are 10 times lower than other types of water meters, such as displacement, traditional turbine and multi-jet.
ICWM Owners: log in to the ICWM Portal to view your meter information
- 5-year data plan works anywhere the Verizon wireless network reaches, avoiding costs of network integration.

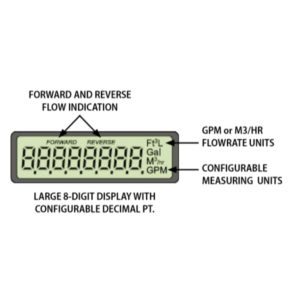

- Digital register with web interface for water usage data collection and analysis, including monthly water budgeting and over-usage alerts.
- Extreme low-flow accuracy starting 0.1 gpm to easily identify leaks.
- Wide operating temperature range.
- Lead-free NSF61 compliant.
- Low flow, backflow, and high usage reports and alerts.
- 5-year data service plan + 5-year warranty included.
- Compact design for tight installations with no upstream or downstream straight pipe requirements.
- Single moving element and no strainer requirement for low maintenance.
- Brass body for durable, long-lasting performance.
- Unaffected by sand or small debris in line.
- High resistance to freezing.
- 100% submersible for flexible usage.
- ICWM075S durable composite plastic model also available with for long-lasting, maintenance-free life

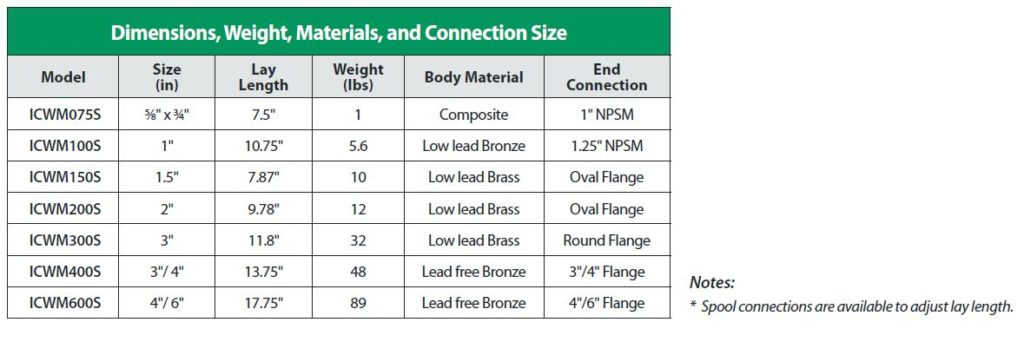

Model Comparison
- ICWM075S: 5/8" with 1" NPSM end connection
- ICWM100S: 1" with 1.25" NPSM end connection
- ICWM150S: 1.5" with flange end connection
- ICWM200S: 2" with flange end connection
- ICWM300S: 3" with flange end connection
- ICWM400S: 4" with flange end connection

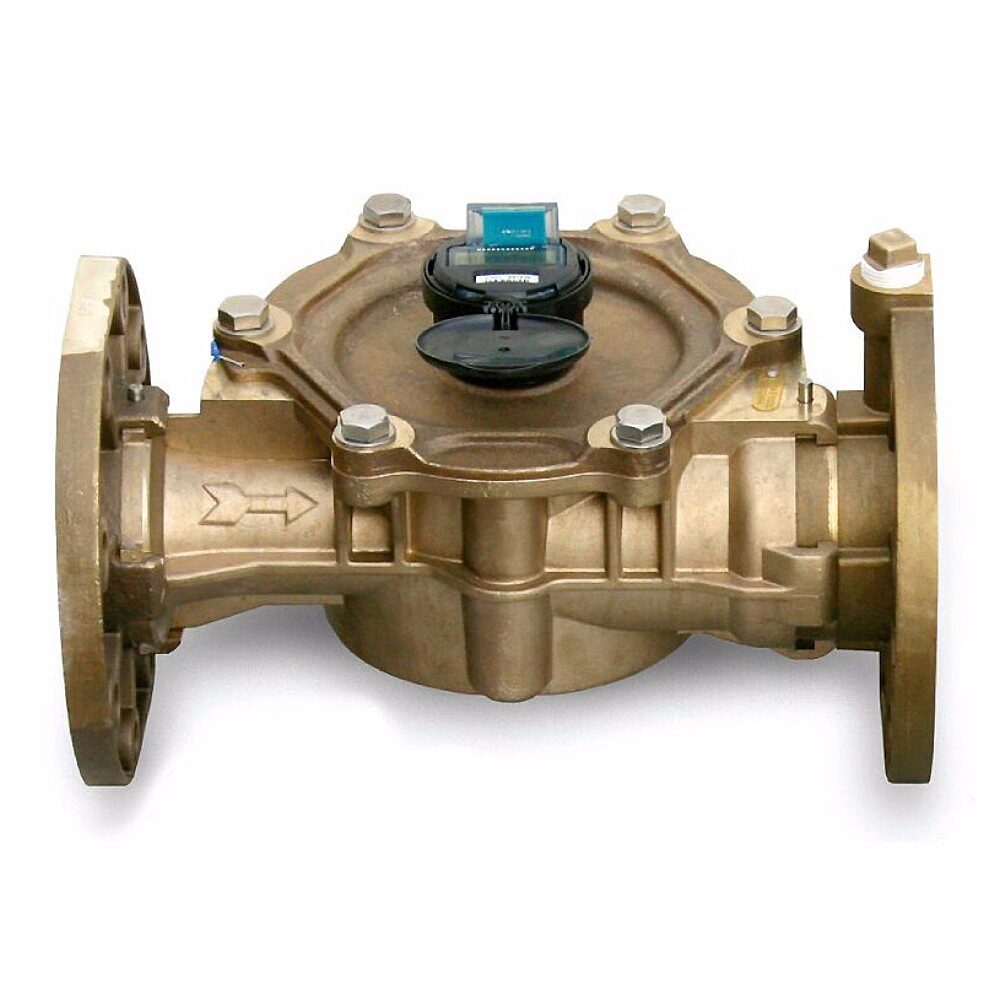

- ICWM600S: 6" with flange end connection
- ICWMREG: Universal Register Only
Certifications
- FM Approved (ICWM600S).
- NSF Standard 61 Compliant.
- AWWA C712 Standard.
