Inline RBY Filter

Home Inline RBY Filter

Control Zone Components

Static filter helps prevent plugging in a drip irrigation system

A simple and reliable filter for low-volume irrigation systems.

Simple to clean, as cap has a sealing O-ring and unthreads to provide access to the stainless steel filter element.

Strong and reliable due to its robust design and glass-filled polypropylene construction.



  • A simple and reliable filter for low-volume irrigation systems
  • Simple to clean, as cap has a sealing O-ring and unthreads to provide access to the stainless steel filter element
  • Strong and reliable due to its robust design and glass-filled polypropylene construction
  • Male x Male threaded connections for direct connection to valves and pressure regulators
  • Replacement stainless steel elements are available in 200 mesh (75 micron)

  • RBY075MPTX: ¾" Inline RBY Filter with 200 Mesh Screen
  • RBY100MPTX: 1" Inline RBY Filter with 200 Mesh Screen
Replacement Screen
  • RBY-200SSMX (200 mesh stainless steel screen)
Operating Range
  • Flow:
    • 3/4" units: 0.20 to 12.0 GPM (0.8 to 45.4 l/m)
    • 1" units: 0.20 to 18.0 GPM (0.8 to 68.1 l/m)
  • Pressure: 20 to 150 psi (1.4 to 10.3 bar)
  • Filtration: 200 mesh (75 micron)

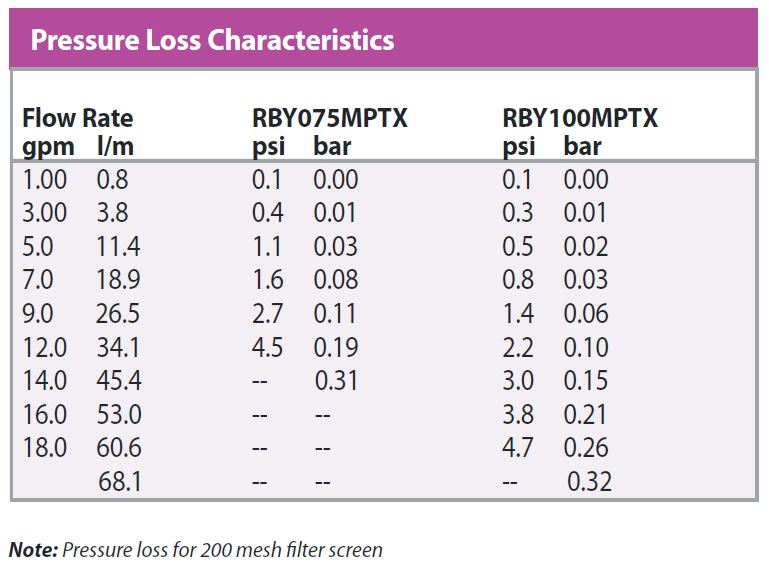

Pressure Loss Chart
In order to supply 40 psi (2.8 bars) outlet pressure, additional pressure is needed at the inlet since there is some pressure loss from water flowing through the kit. The amount of pressure loss depends on the flowrate.
