Pressure Compensating Modules
High Flow Pressure Compensating Emitters (Flows: 5-24 gph)
Point-Source Medium-Flow Emitters for Watering Larger Shrubs and Trees
The only emitters with self-piercing barbs, making them the easiest to install using the Xeriman™ tool.
Widest selection of pressure-compensating emitters, with 6 flow rates and 2 inlet options.
- Most compact and unobtrusive emitters
- Flow rates from 5 to 24 gph (18.93 to 90.84 l/h)
- Pressure-compensating design delivers uniform flow throughout a wide pressure range (10 to 50 psi; 0.7 to 3.5 bar)
- Available with 2 different inlets:
- Self-piercing barbs for quick one-step emitter insertion into 1⁄2" or 3⁄4" drip tubing
- 10-32 threaded inlet that easily threads into a PolyFlex Riser, 1032 Thread adapter, or 1800 Xeri-Bubbler Adapter
- Robust design - durable plastic construction is UV-resistant and color-coded to identify flow rate

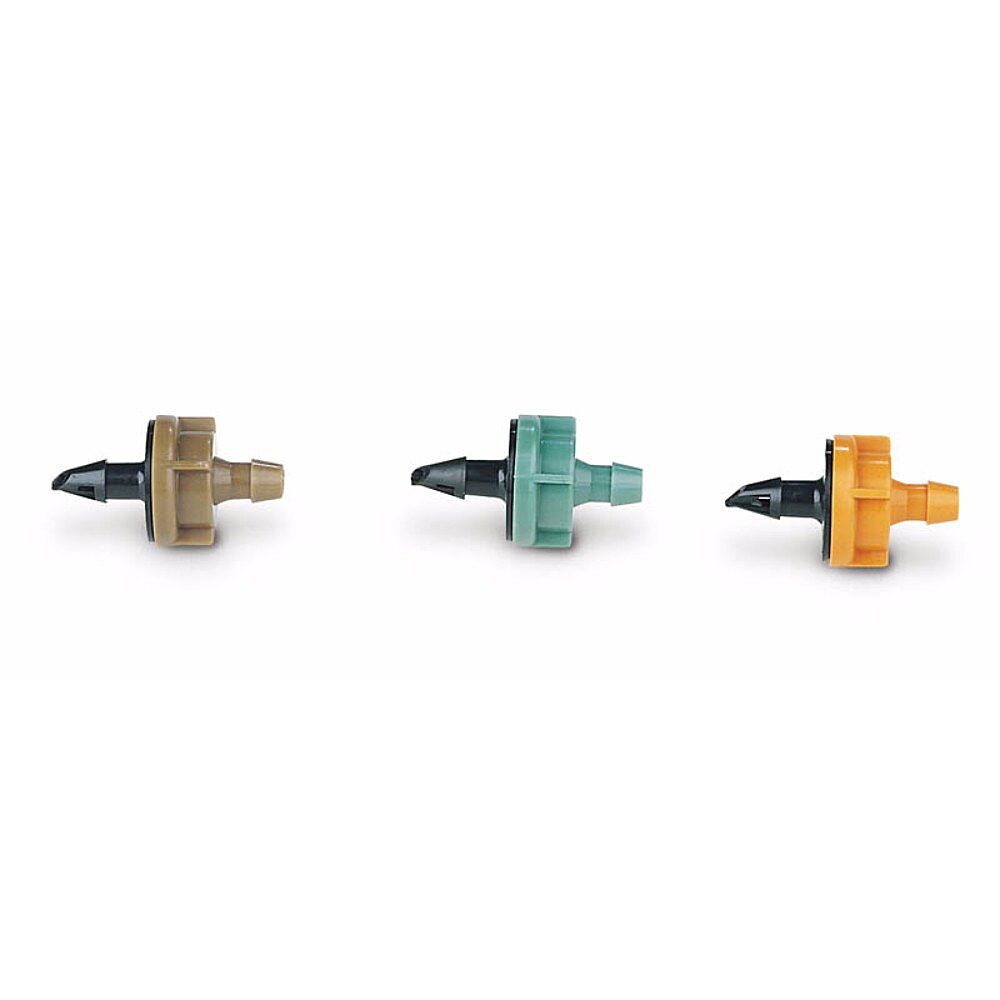

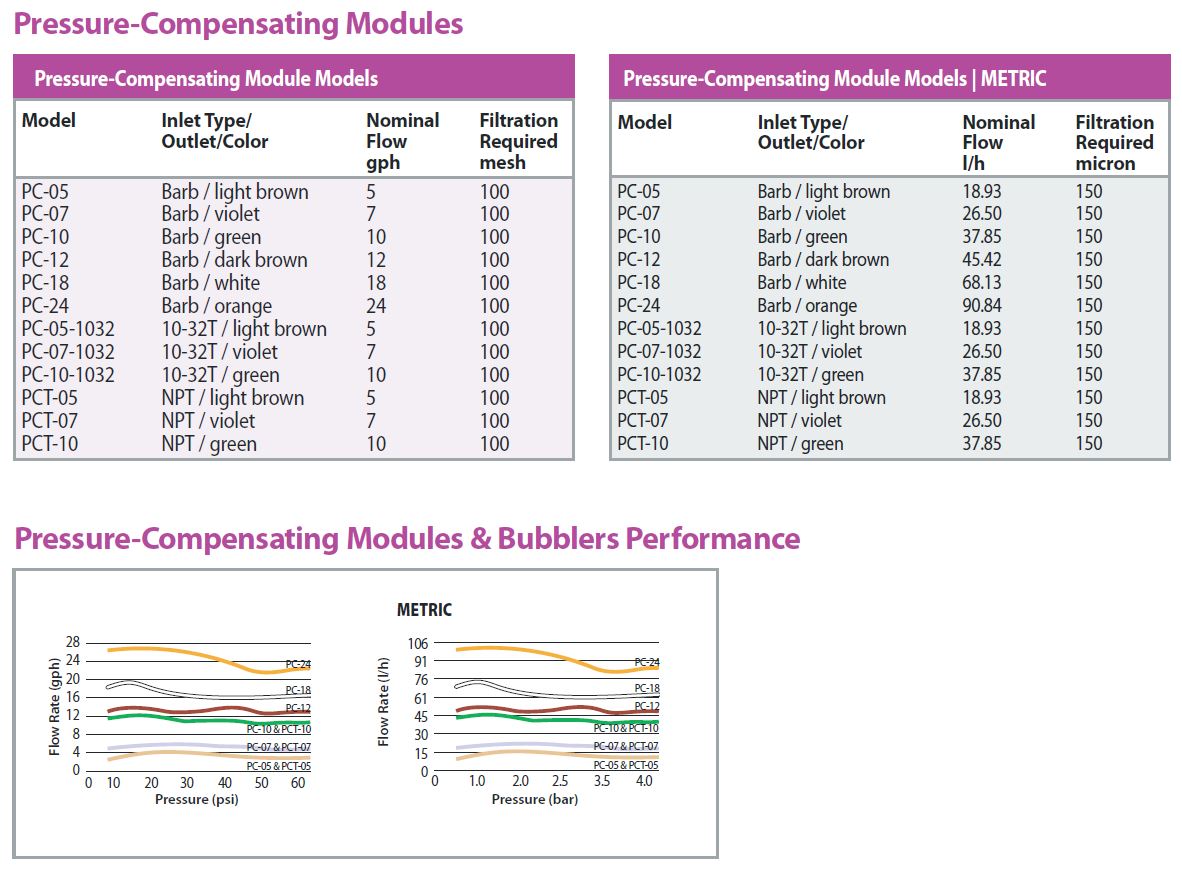

Models: Barb Inlet x Barb Outlet
- PC-05: Light brown, 5 gph (18.93 l/h)
- PC-07: Violet, 7 gph (26.50 l/h)
- PC-10: Green, 10 gph (37.85 l/h)
- PC-12: Dark brown, 12 gph (45.42 l/h)
- PC-18: White, 18 gph (68.13 l/h)
- PC-24: Orange, 24 gph (90.84 l/h)
Models: 10-32 Thread Inlet x Barb Outlet
- PC-05-1032: Light brown, 5 gph (18.93 l/h)
- PC-07-1032: Violet, 7 gph (26.50 l/h)
- PC-10-1032: Green, 10 gph (37.85 l/h)
Operating Range*
- Flow: 5 to 24 gph (18.93 to 90.84 l/h)
- Pressure: 10 to 50 psi (0.7 to 3.5 bar)
- Required filtration: 100 mesh (150 micron)
Point Source Emitter Calculator
- This tool will calculate the Daily Plant Water Requirement (PWR), provide you with the number of emitters required to irrigate each individual plant, and suggest the run time for your point source drip irrigation project.
