RSD Series Rain Sensor

• RSD Series Rain Sensors offers flexible, multiple rainfall settings which are quick and easy to adjust with a twist of the dial.
• High-grade, UV-resistant body on an aluminum bracket easily resists the elements, ensuring hassle-free performance.
• An adjustable side vent ring allows the sensor to dry out once it collects water.
• Moisture sensing disks work in a variety of climates
• Wire: 25 ft. (7,6 m) length of 20, 2 conductor UV resistant extension wire

Dimensions

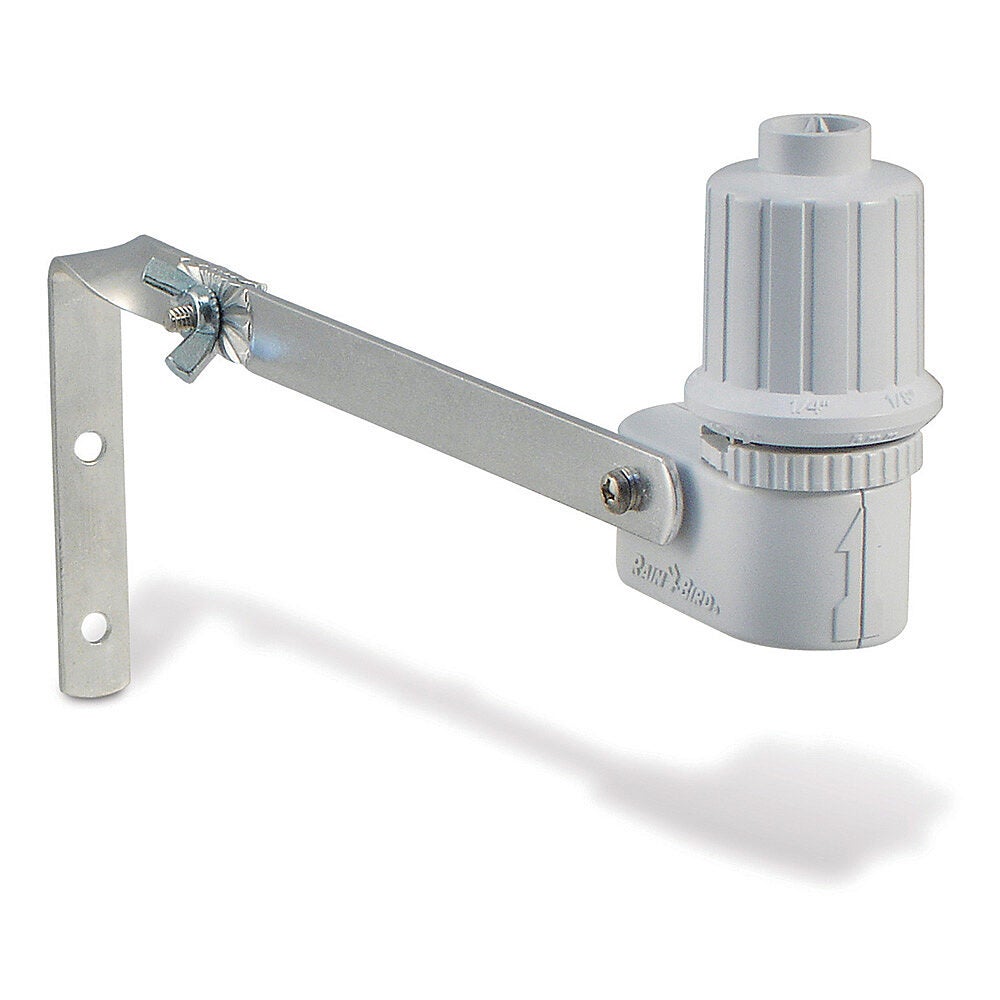

RSD-BEx
Overall Length: 6.5" (16,5 cm)
Overall Height: 5.4" (15,7 cm)
Bracket hole pattern: 1.25" (3,2 cm)

RSD-CEx
Overall Length: 3" (7,6 cm)
Overall Height: 2.75" (7 cm)

Electrical Specifications

• Application: suitable for low voltage 24VAC control circuits and 24 VAC pump start relay circuits (not recommended for use with high voltage pump start, pump start relay circuits or devices).
• Switch electrical rating: 3A @ 125/250 VAC.
• Capacity: Electrical rating suitable for use with up to ten 24VAC, 7VA solenoid valves per station, plus one master valve.
• Wire: 25' (7,6 m) length of #20, 2 conductor UV resistant extension wire.
• UL, cUL listed; CE, C-Tick approved.

Mechanical Properties

• Multiple rainfall settings from 1/8" to 3/4" (5-20 mm) are quick and easy with just the twist of a dial.
• Adjustable vent ring helps control drying time.
• High-grade, UV-resistant polymer body resists the elements.
• Available in rugged aluminum bracket version (RSD-BEx comes with 5" latching aluminum bracket) or conduit version (RSD-CEx) for a clean and professional look.
