TLF Series Twist Lock Fittings

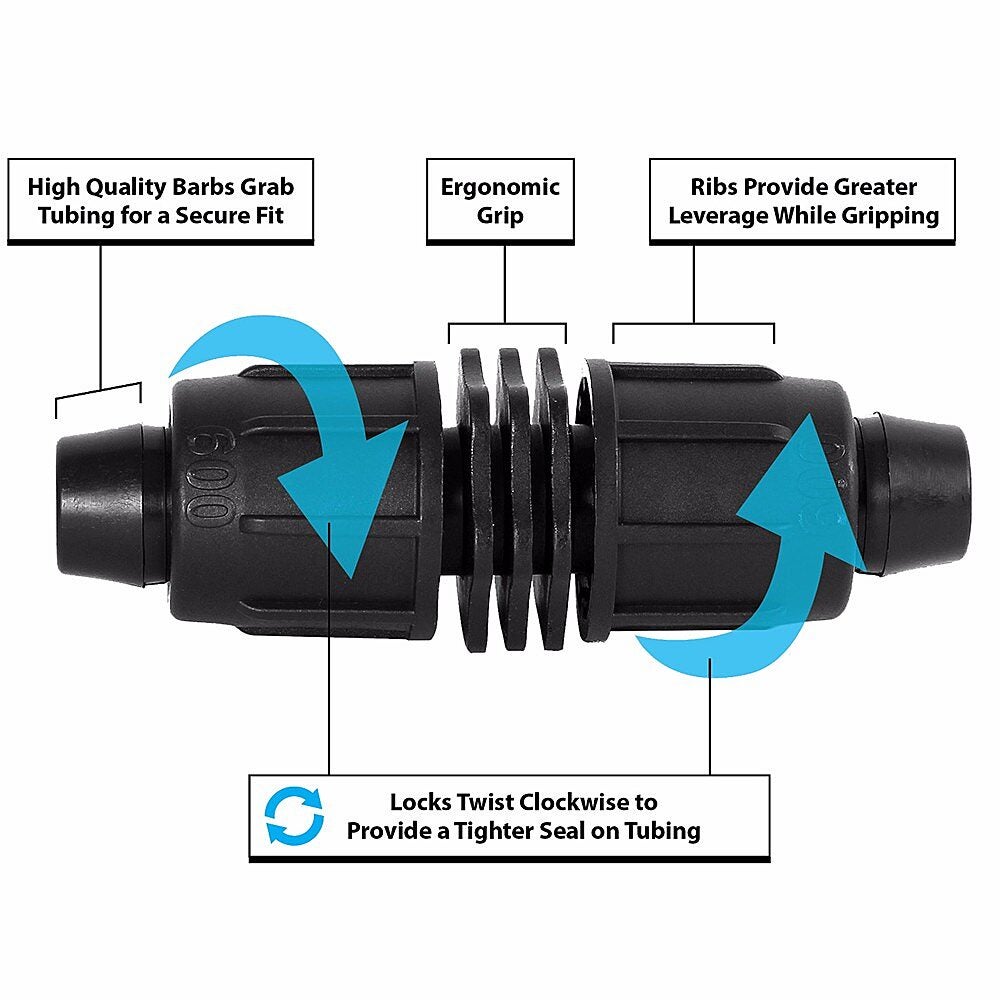

• Complete line of Twist Lock Fittings to simplify installation of QF Header, Dripline, and Blank Distribution Tubing
• Fittings provide an even tighter seal on tubing by using high quality barbs and twist locking nuts
• Unique barb design reduces insertion force while maintaining a secure fit

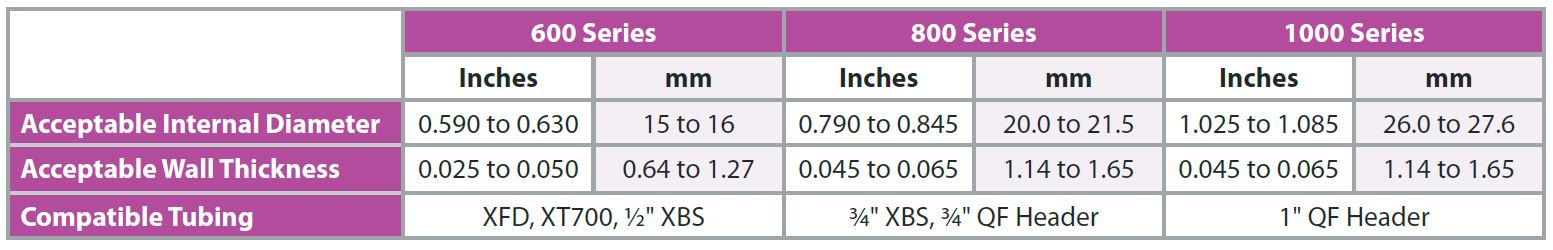

Internal Diameter:

• 600 Series: Min ID 0.590" (15mm) -- Max ID 0.630" (16mm)
• 800 Series: Min ID 0.790" (20.0mm) -- Max ID 0.845" (21.5mm)
• 1000 Series: Min ID 1.025" (26.0mm) -- Max ID 1.085" (27.6mm)

Wall Thickness:

• 600 Series: 0.025" to 0.050" (0.64mm to 1.27mm)
• 800 Series: 0.045" to 0.065" (1.14mm to 1.65mm)
• 1000 Series: 0.045" to 0.065" (1.14mm to 1.65mm)

Operating Pressure:

• 0 to 60 psi

600 SERIES (½"):

• TLF-CUPL-0600: Twist Lock Fitting ½” Coupler
• TLF-TEE-0600: Twist Lock Fitting ½” Tee
• TLF-ELBW-0600: Twist Lock Fitting ½” Elbow
• TLF-MPT6-0600: Twist Lock Fitting ½” NPT to ½” Adaptor
• TLF-MPT8-0600: Twist Lock Fitting ¾” NPT to ½” Adaptor

800 SERIES (¾"):

• TLF-CUPL-0800: Twist Lock Fitting ¾” Coupler
• TLF-TEE-0800: Twist Lock Fitting ¾” Tee
• TLF-ELBW-0800: Twist Lock Fitting ¾” Elbow
• TLF-MPT8-0800: Twist Lock Fitting ¾” NPT Adaptor
• TLF-CAP-0800: Twist Lock Fitting ¾” Cap

1000 SERIES (1"):

• TLF-CUPL-1000: Twist Lock Fitting 1” Coupler
• TLF-TEE-1000: Twist Lock Fitting 1” Tee
• TLF-ELBW-1000: Twist Lock Fitting 1” Elbow
• TLF-MPT8-1000: Twist Lock Fitting 1” NPT Adaptor
