Wide Flow Commercial Control Zone Kit with Pressure Regulating Basket Filter

Home Wide Flow Commercial Control Zone Kit with Pressure Regulating Basket Filter

Commercial Wide Flow: 0.3-20 gpm

Rain Bird Control Zone Kits provide all of the components necessary for on/off control, filtration, and pressure regulation in a single package, making them simple to order and easy to install.

  • Industry wide flow range between 0.3 and 20 gpm (1.13 to 75.71 l/m) leading enables single SKU purchase for large projects
  • Updated with the reliable, flexible and proven PEB valve with the rugged pressure regulating basket filter
  • This PR Filter kit provides on/off control, filtration, and pressure regulation with only two parts; so there is less chance of leakage at the connections, both at installation and over the life of the system
  • The “No Spill” feature of the basket filter ensures dirt does not fall back into the filter during cleanup operation. The threaded filter top with O-ring makes it easy to remove and clean that stainless steel filter screen

Operating Range
  • Flow: 0.3 to 20 gpm (1,13 to 75,71 l/m)
  • Pressure: 15 to 150 psi (1,04 to 10,35 bar)

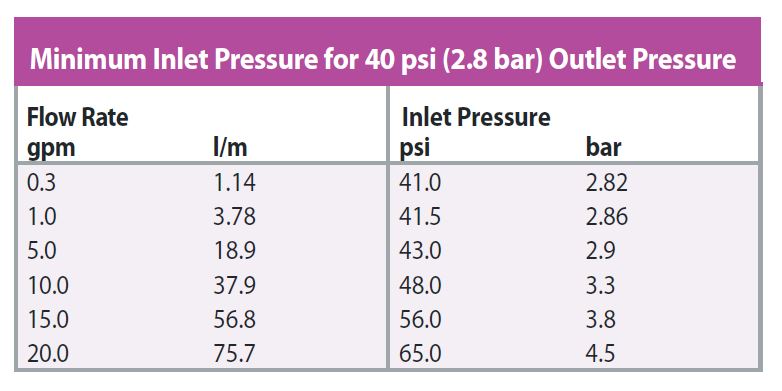

  • Regulating Pressure: 40 psi (2,7 bar)
  • Temperature: up to 150F (66C)
  • Filtration: 200 mesh (75 micron)* *Can be replaced with 100 or 120 mesh Rain Bird filter, available separately
Replacement Filter Screens
  • QKCHK-100M: 100 mesh stainless steel screen, red
  • QKCHK-200M: 200 mesh stainless steel screen, white
Replacement Cap
  • BFCAP (Complete cap with body o-ring)
* For flows below 5gpm Rain Bird recommends use of upstream filtration to prevent debris from collecting below the diaphragm

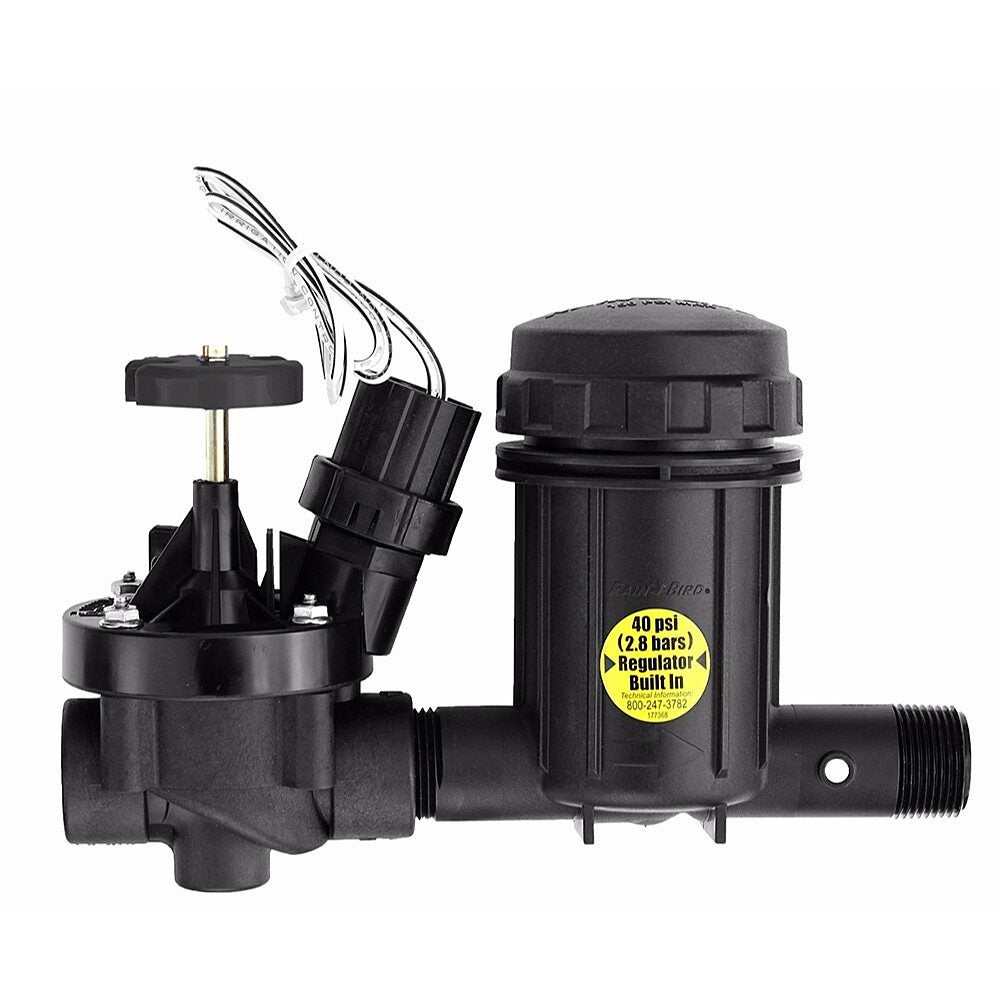

  • XCZ-100-PRB-LC: 1” PEB Valve with 1” Pressure Regulating (40 psi), Basket Filter
  • XCZ-100-PRB-MC: 1" PESB Valve with 1” Pressure Regulating (40 psi), Basket Filter
