Rain Bird Xeri-Bubblers

Adjustable Low Volume Sprays and Micro Bubblers

Ideal for Shrub Plantings, Trees, Containers, and Flower Beds

Rain Bird Xeri-Bubblers are ideal for watering shrubs, trees, container plantings and flower beds. Water-efficient low volume streams are directed in either half circle or full circle patterns. A full circle umbrella pattern is also available for gentle watering of delicate plants.

Rain Bird Xeri-Bubblers are also available on a 5" spike, including a barb x barb coupler.



  • Adjust flow and radius by turning outer cap
  • Clean by completely unscrewing cap from base unit
  • Three convenient installation connections available for design flexibility: 10-32 self-tapping thread, 1⁄4" barb, and 5" spike

Operating Range

  • Pressure: 15 to 30 psi (1.0 to 2.1 bar)
  • SXB Series flow:
    • 0 to 13 gph (0 to 49.21 l/h) at 30 psi (2.1 bar)
    • 0 to 8.5 gph ( 0 to 30 l/h) at 15 psi (1 bar)
  • UXB Series flow:
    • 0 to 35 gph (0 to 132.48 l/h) at 30 psi (2.1 bar)
    • 0 to 26 gph (0 to 98 l/h) at 15 psi (1 bar)
  • Max flow varies with inlet pressure

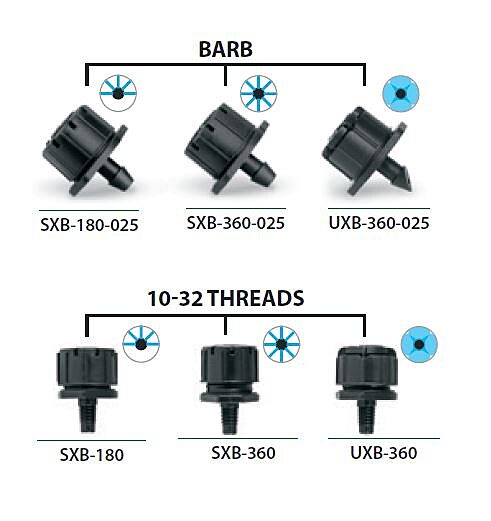

  • SXB-180: Half-circle, 5 streams, 10-32 thread
  • SXB-180-025: Half-circle, 5 streams, 1⁄4" barb
  • SXB-180-SPYK: Half-circle, 5 streams, 5" spike; includes barb x barb coupler
  • SXB-360: Full-circle, 8 streams, 10-32 thread
  • SXB-360-025: Full-circle, 8 streams, 1⁄4" barb
  • SXB-360-SPYK: Full-circle, 8 streams, 5" spike; includes barb x barb coupler
  • UXB-360: Full-circle, umbrella, 10-32 thread
  • UXB-360-025: Full-circle, umbrella, 1⁄4" barb
  • UXB-360-SPYK: Full-circle, umbrella, 5" spike; includes barb x barb coupler
