Weathermatic Rotors

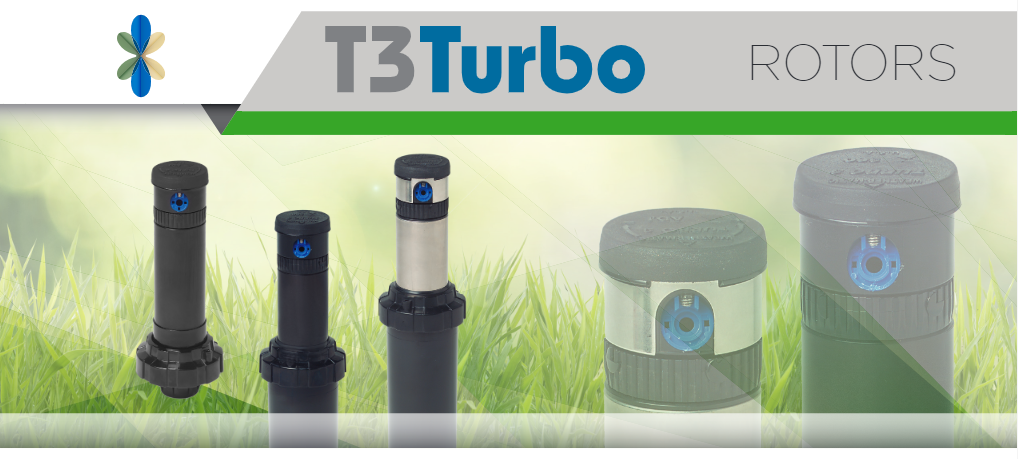

T3/T35 FEATURES

• 5 year warranty and 100% water tested
• Thick, vandal resistant rubber cover is standard; visible arrows indicate + or – arc adjustment
• Radius adjustment screw decreases radius up to 25%
• “Punch-thru” cover to protect nozzle retaining screw from debris
• Easy-grip threaded cover
• 14 field-changeable nozzles – SmartAngle (low angle) and Flow+ included
• Safety clutch for vandal protection; ratchets like a sprayhead
• Part circle models adjust from 40 – 360°; no tools required
• Expanded “arc dwell” on part circle models provides full coverage along borders
• Pressure activated wiper seal and strong stainless steel spring on pop-up models to ensure positive retraction
• High-tech micro filter protects reversing mechanism
• Streamlined large flow tube to minimize pressure loss through sprinkler
• Impeller flow regulator automatically matches rotation to nozzle selection
• Smooth impeller gear drive for highly uniform watering
• Large area, basket type, removable strainer for debris protection
• Standard Ready Check™ check valve on T3 and T35 models is easily reversed in the field to a “check” position. Check valve holds back 12’ (3,7 m/hd) of elevated water.

CONSTRUCTION

• High-strength non-corrosive plastics and metals used throughout sprinkler
• Sealed, lubricant packed drive housing provides long life performance
• Options (factory installed)
• Non-potable cover (add “N” suffix)
• Vandal cover lock (add “XV” prefix)
• Check valve in “check” position (add “CV” prefix)

T3 Rotor Sales Sheet

T3 Installation Instructions

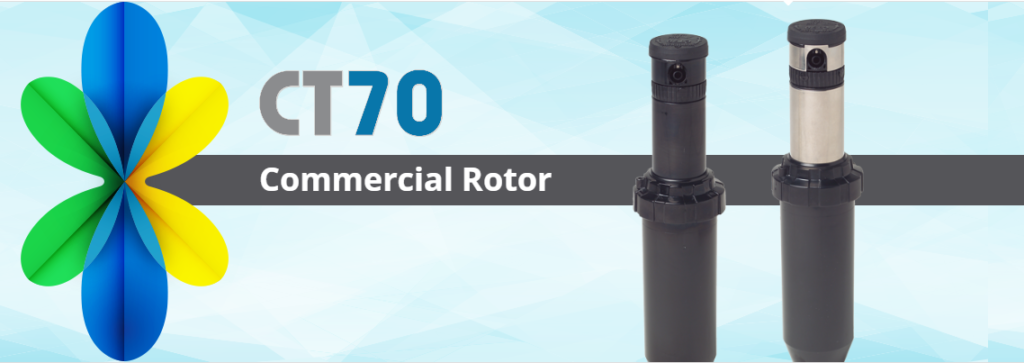

CT70 FEATURES

• 5 year trade warranty and 100% water tested
• Thick, vandal resistant rubber cover is standard; visible arrows indicate + or – arc adjustment
• Radius adjustment screw decreases radius up to 25%
• “Punch-thru” cover to protect nozzle retaining screw from debris
• Easy grip threaded cover
• 5 field changeable nozzles
• Safety clutch for vandal protection; ratchets like a sprayhead
• Part circle models adjust from 40 – 360°; no tools required
• Expanded “arc dwell” on part circle models provides full coverage along borders
• Pressure activated wiper seal and strong stainless steel spring on pop-up models to ensure positive retraction
• High-tech micro filter protects reversing mechanism
• Streamlined large flow tube to minimize pressure loss through sprinkler
• Impeller flow regulator automatically matches flow to nozzle selection
• Smooth impeller gear drive for highly uniform watering
• Large area, basket type, removable strainer for debris protection
• Standard Ready Check™ check valve on CT70 and CT70-36 models is easily reversed in the field to a “check” position. Check valve holds back 15’ (4,6 m/hd) of elevated water

CONSTRUCTION

• High-strength non-corrosive plastics and metals used throughout sprinkler
• Sealed, lubricant packed drive housing provides long life performance

CT70 Rotor Installation Instructions
